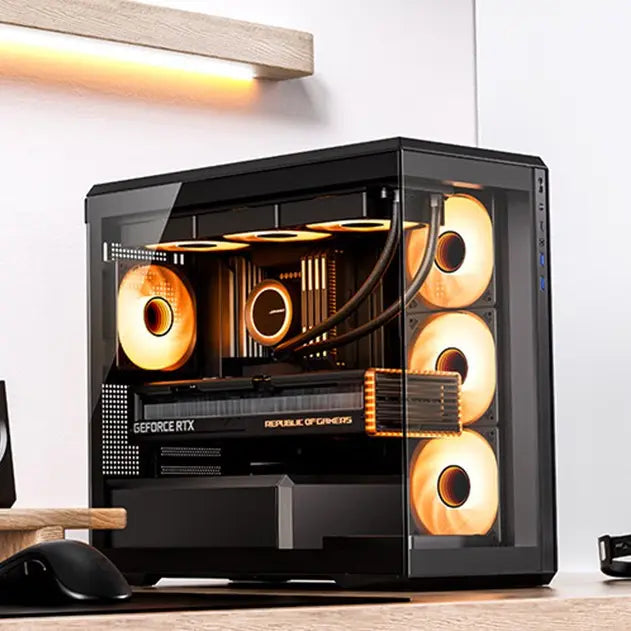

D301 Gaming Case (M-ATX)

The Jonsbo D301 is a distinctive gaming case for those seeking modern design, premium construction, and excellent support for high-performance hardware. With its pillarless front design and tempered glass side panel, it offers a clean and expansive view of the internal components, creating a true gaming aquarium .

Compact in its M-ATX/ITX form factor, yet extremely spacious and versatile, the D301 supports robust graphics cards up to 430 mm , CPU coolers up to 180 mm in height, and liquid cooling systems up to 360 mm , ensuring compatibility with powerful configurations.

Another highlight is the front panel with USB 3.2 Gen2 Type-C , in addition to USB 3.0 and audio connections, delivering more convenience and connectivity.

Main Features

• Pillarless design with tempered glass side panel: premium and spacious look for displaying your setup.
• Wide compatibility: supports M-ATX and ITX motherboards.
• Generous internal space: supports GPUs up to 430 mm and coolers up to 180 mm.
• Versatile cooling: supports up to 10 x 120mm fans or 4 x 140mm fans , plus radiators up to 360mm.
• Modern connectivity: front panel with USB 3.2 Gen2 Type-C , USB 3.0, audio input and microphone.
• Premium construction: reinforced steel with tempered glass sides and a robust weight of 11 kg.

Technical Specifications

• Product: Jonsbo D301 Gaming Case
• Form factor: M-ATX, ITX
• Material: Steel and tempered glass
• Size: 235 mm (W) x 423 mm (H) x 455 mm (D)
• Weight: 11 kg
• Bays: 2x SSD 2.5" / 1x SSD 2.5" extra / 1x HDD 3.5"
• Maximum GPU length: 430 mm
• Maximum cooler height: 180 mm
• Maximum PSU length: 200 mm
• Radiator mounts: 360 mm (top), 240/280 mm (top), 120/140 mm (rear)
• Fan options:
  • Top: 3 x 120 mm or 2 x 140 mm
  • Side: 3 x 120 mm
  • Rear: 1 x 120 mm or 1 x 140 mm
  • Bottom: 1 x 120 mm
  • Fountain room: 2 x 120 mm or 1 x 140 mm
• Front ports: 1x USB 3.2 Gen2 Type-C / 1x USB 3.0 / Audio / Mic
• PSU compatibility: ATX up to 200 mm

This case is designed for compact setups, but without sacrificing performance and style, ideal for those who like clean and well-organized setups.
