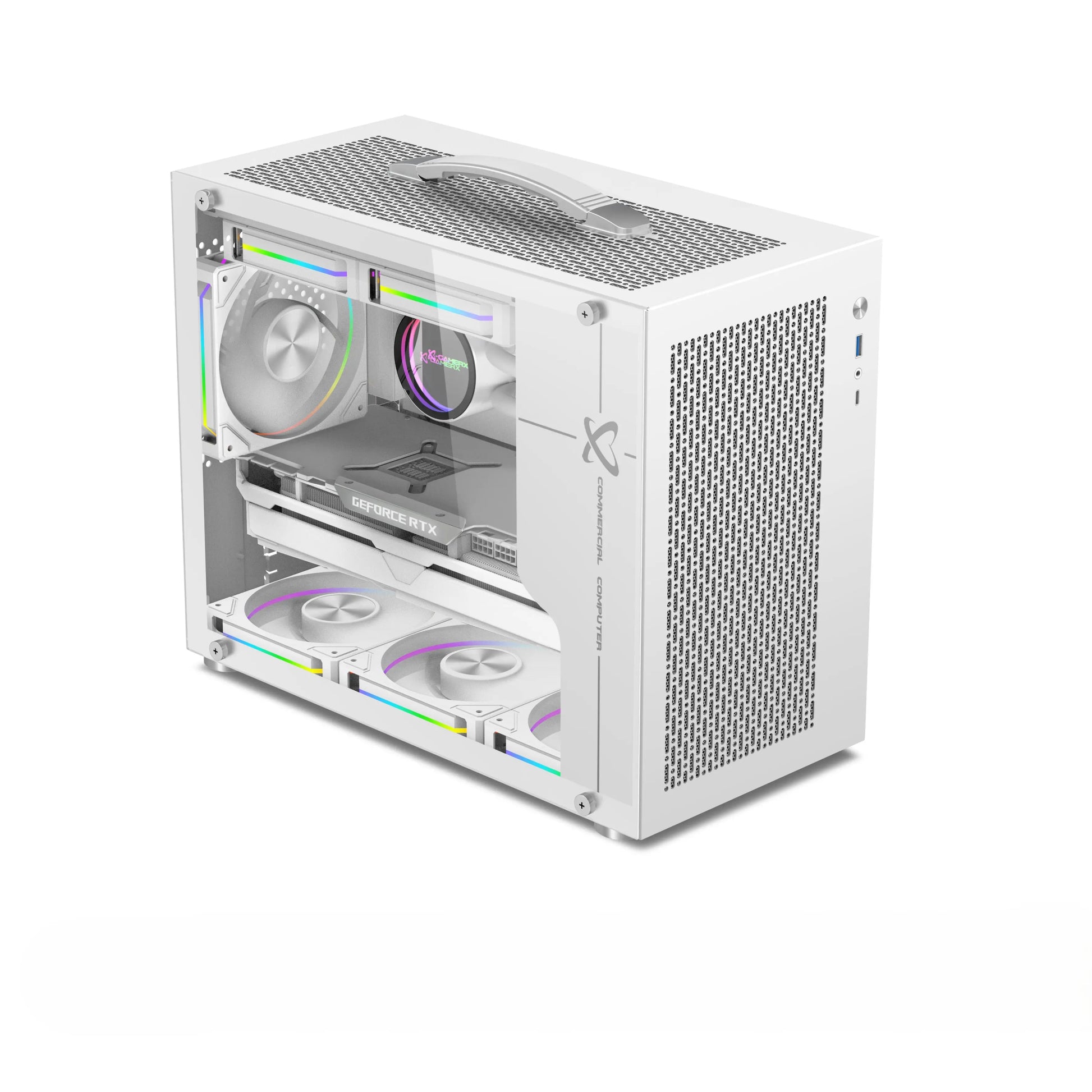

The Power Train X100 Pro is a compact gaming case in Mini M-ATX form factor, designed for those seeking power in a small space without sacrificing style. Featuring a tempered glass side panel , it enhances the look of your setup and offers full support for water cooling up to 240mm .
Its intelligent design allows for excellent internal space utilization, supporting video cards up to 360mm and coolers up to 160mm in height, as well as compatibility with ATX or SFX power supplies , offering versatility during assembly.
Main Features
Compact gaming design: Frame made of SPCC steel up to 1.0mm thick and tempered glass sides, combining strength and style.
Extensive hardware support: Compatible with GPUs up to 360mm and coolers up to 160mm in height .
Versatility in the power supply: Support for both ATX and SFX , offering more freedom in configuration.
Powerful cooling system: Supports up to 6 x 120mm fans or a 240mm radiator on top for liquid cooling.
Flexible storage: Option to install 3 x 3.5" HDDs + 1 x 2.5" SSD or 1 x 3.5" HDD + 3 x 2.5" SSDs .
Modern front panel: Includes USB 3.0, Type-C and audio , ensuring practical and up-to-date connectivity.
Technical Specifications
Product: Power Train X100 Pro Case
Color: Black / White
Size: 395 × 193 × 329 mm
Weight: 4.2 kg
Material: SPCC steel 0.7 ~ 1.0 mm + tempered glass
Compatibility: M-ATX / ITX
Source: ATX (150mm) / SFX (125mm)
Maximum cooler height: 160mm
Maximum GPU length: 360mm
Internal bays: 3 x 3.5" HDD + 1 x 2.5" SSD or 1 x 3.5" HDD + 3 x 2.5" SSD
PCI expansion: 4 slots
Front interface: 1 × USB 3.0 / 1 × USB Type-C / Audio
Supported fans:
Top: 2 x 120mm or 240mm radiator
Rear: 1 x 120mm
Bottom: up to 3 x 120mm (when no HDDs are installed) Fan included: 1 x 120mm
Ideal for those who want a compact and robust gaming PC , as well as for office setups with premium performance.
