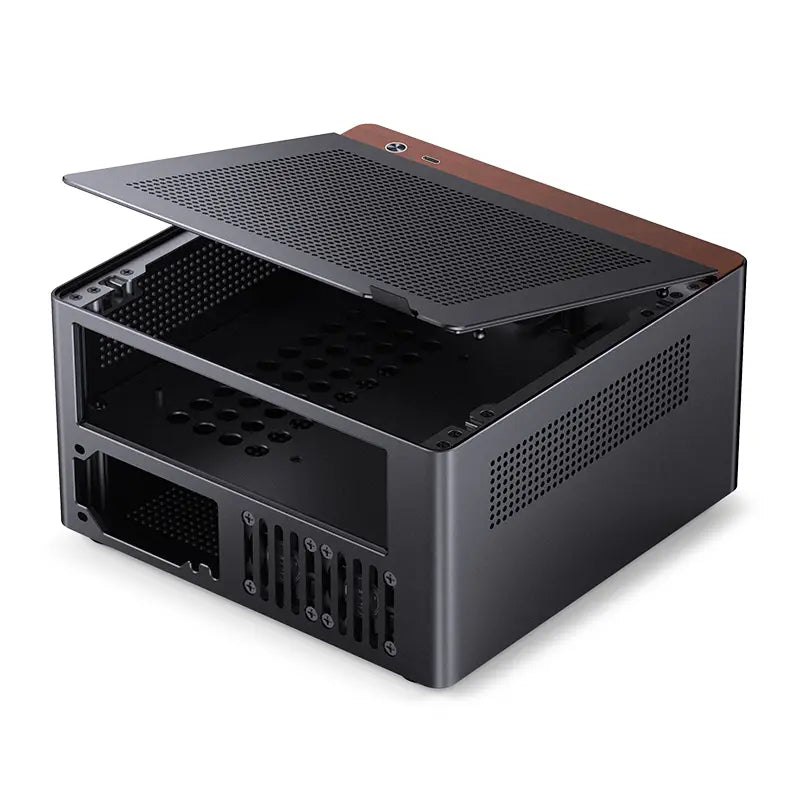

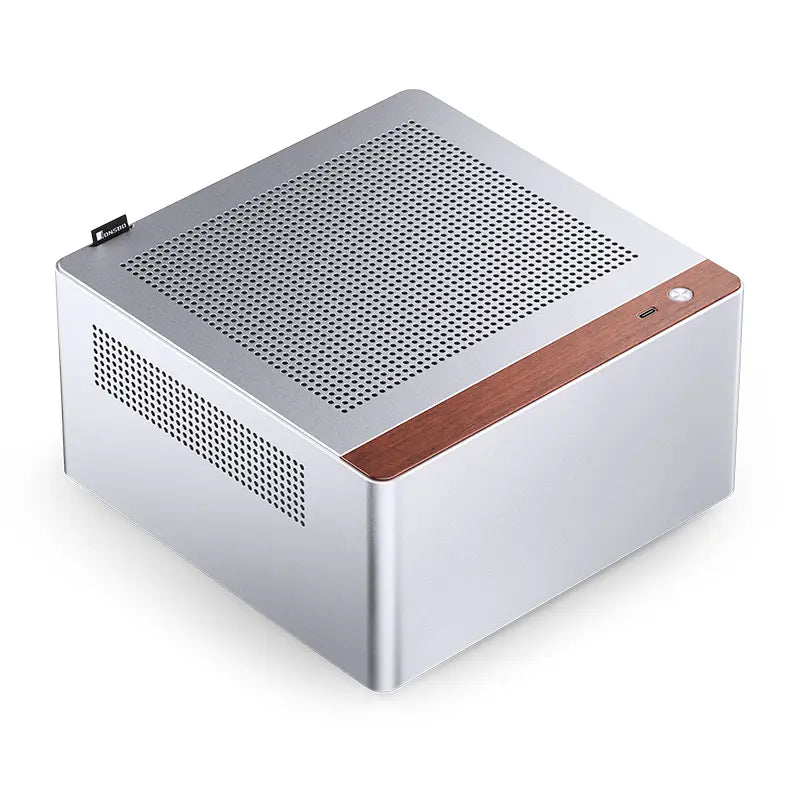

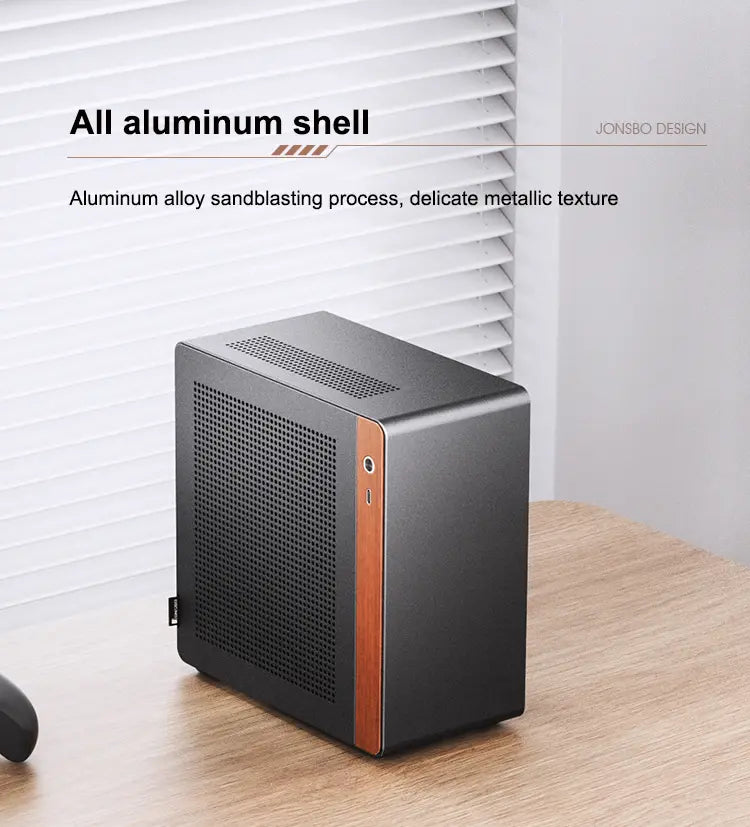

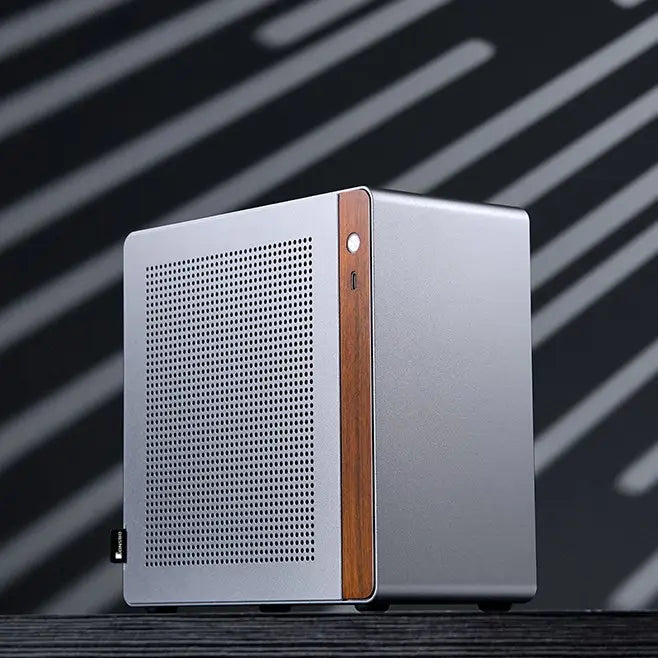

The Jonsbo N10/NV10 line was designed for those seeking minimalist design, premium construction, and an ultra-compact size . Made of anodized aluminum alloy with a reinforced steel frame , the case maintains the brand's clean aesthetic, making it perfect for both office setups and a small, efficient PC .

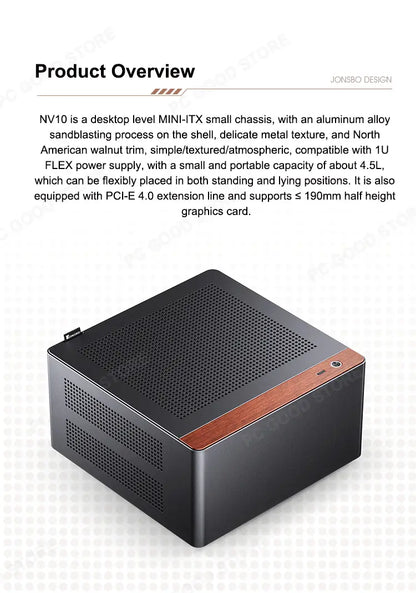

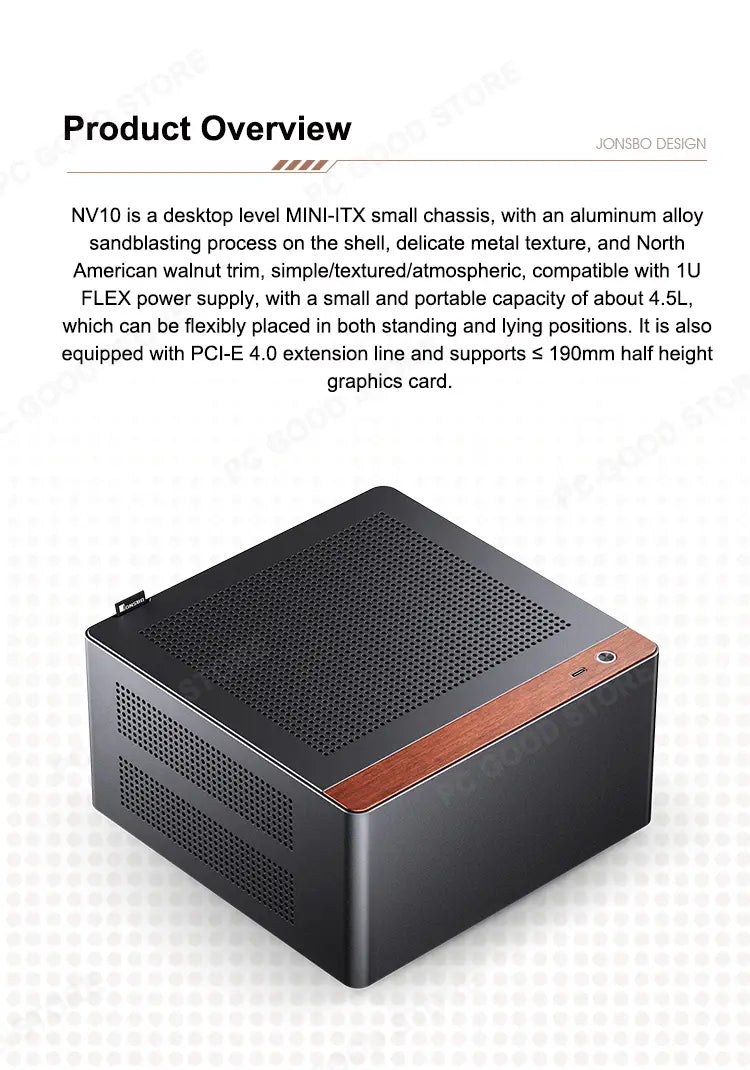

The N10 model is aimed at those who want robust storage , as it supports up to four 2.5" SSDs in just 2 liters of volume. The NV10, on the other hand, focuses on graphics expansion , with support for half-height video cards up to 190mm .
Main Features:
Minimalist and premium design: ultra-compact case made of anodized aluminum alloy and steel, elegant and durable.

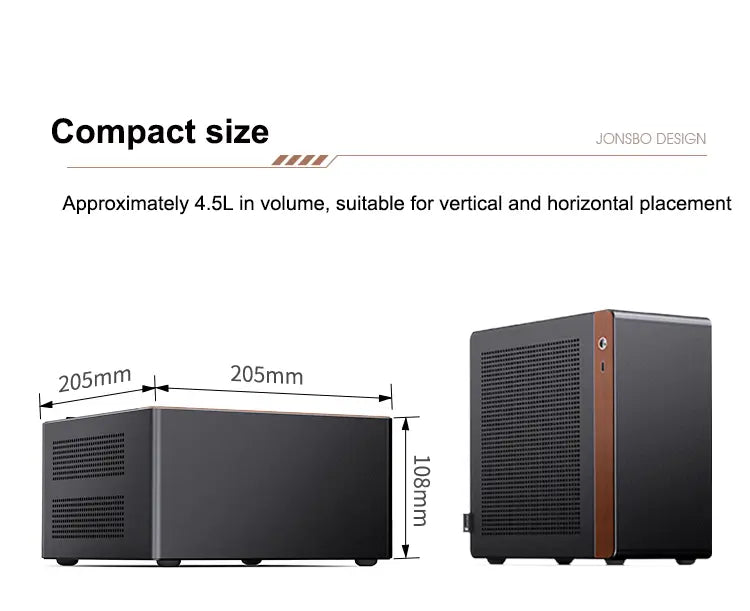

Super compact form factor: only 205 x 205 x 108 mm, ideal for discreet setups.

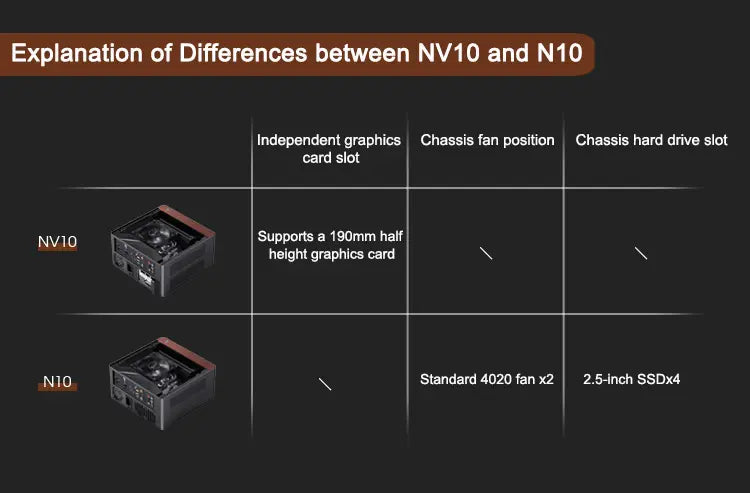

Two models for different uses: • N10: focused on storage, supports up to 4 x 2.5" SSDs • NV10: Focus on expansion, supports half-height graphics cards up to 190mm.

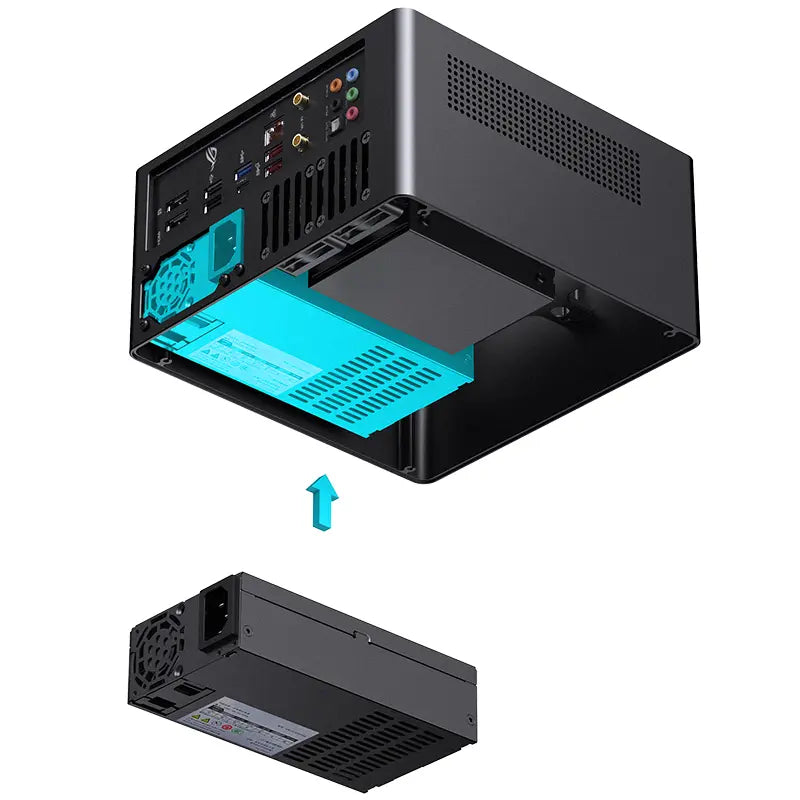

Compatible power supply: designed for FLEX 1U power supplies up to 150mm , optimizing internal space.

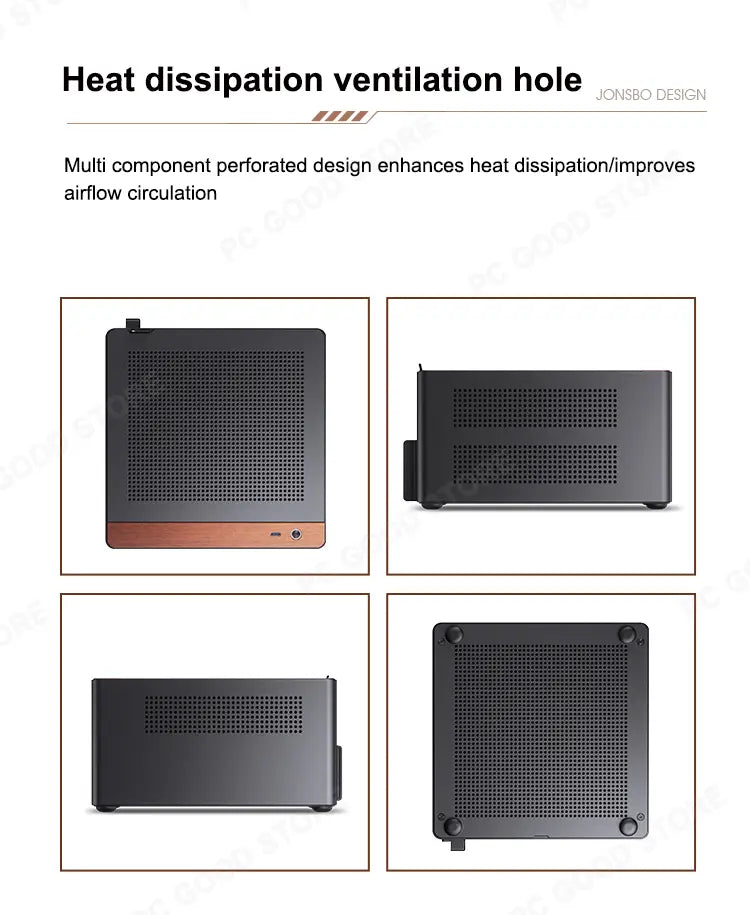

Good cooling for its size: supports 2 x 40mm mini fans (standard on the N10).

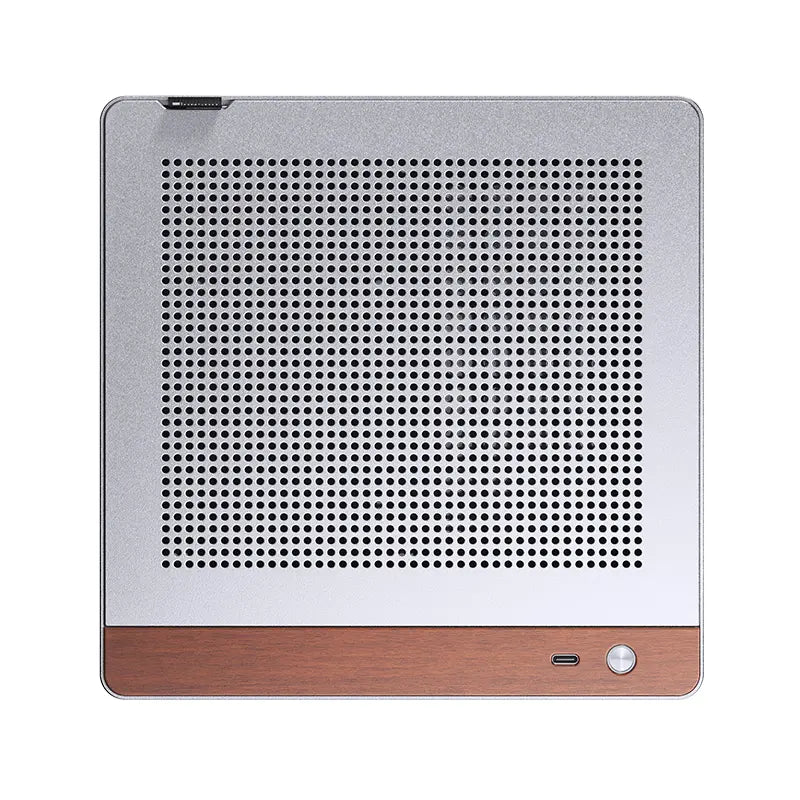

Modern connectivity:Type-C front port for added convenience.
Technical Specifications – N10
Product: Jonsbo N10 Case

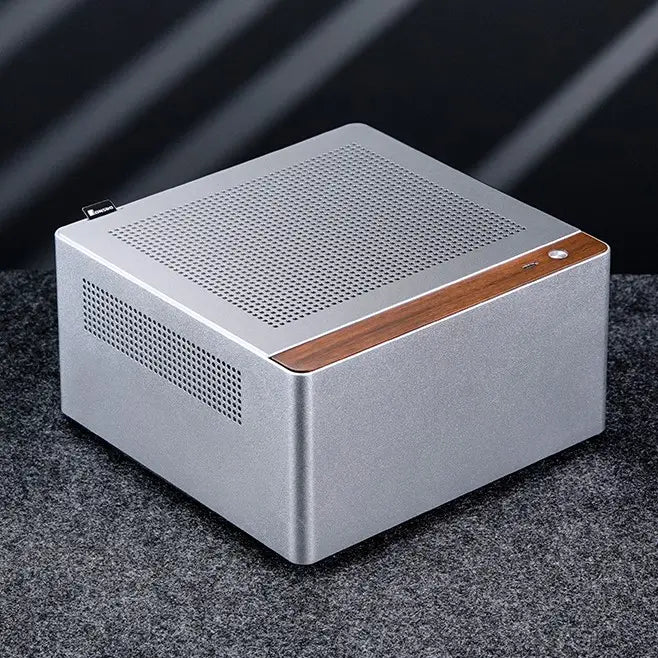

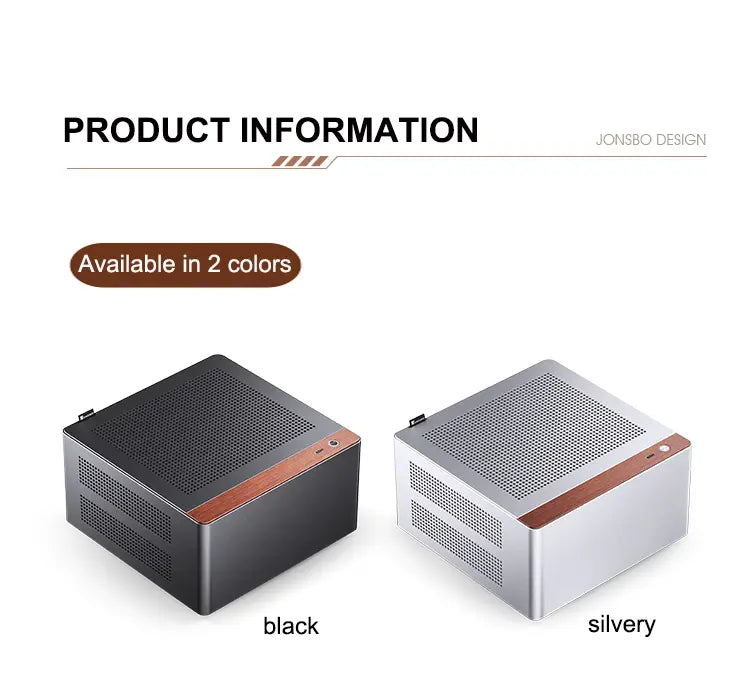

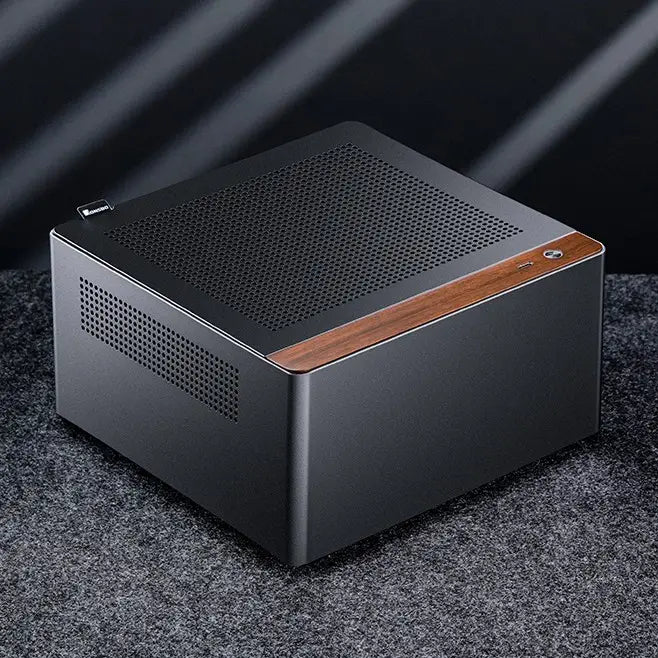

Available models: Black / Silver
Type: Horizontal / Mini-ITX
Material: 3.3mm aluminum alloy + 1.0mm steel
Dimensions: 205mm (W) x 205mm (D) x 108mm (H)
Weight: 1.6kg net / 2kg gross
Motherboard: Mini-ITX
Storage: 4 x 2.5" SSDs
Power supply: FLEX 1U up to 150mm

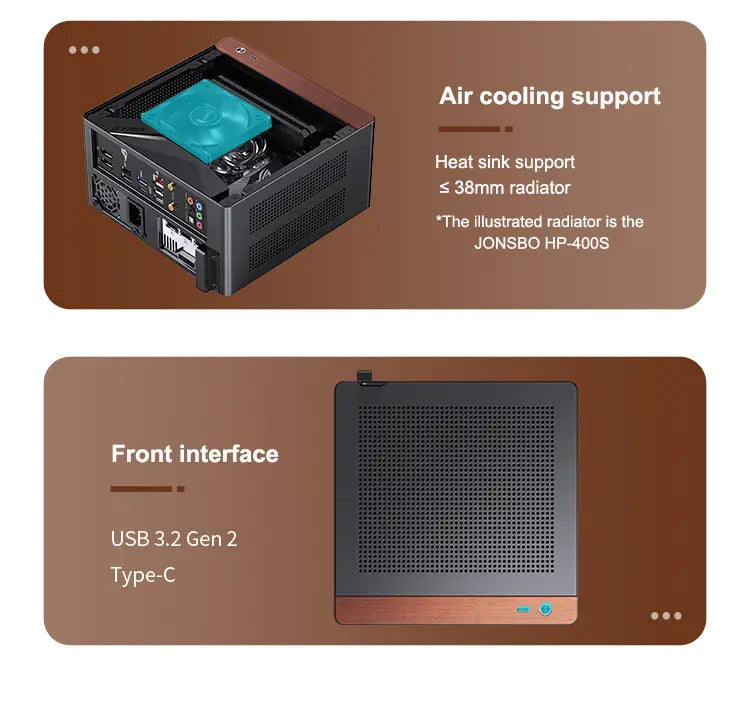

Maximum cooler height: 38mm
Ventilation: 2 x 40mm (5000 RPM) standard
Front doors: Type-C x1

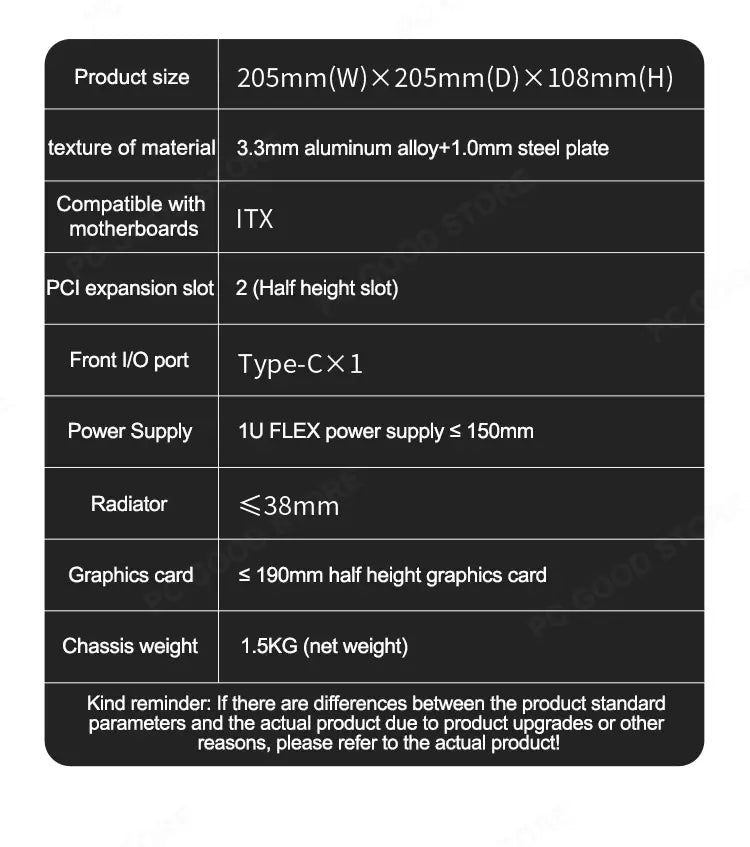

Technical Specifications – NV10
Product: Jonsbo NV10 Case
Available models: Black / Silver
Type: Horizontal / Mini-ITX
Material: 3.3mm aluminum alloy + 1.0mm steel
Dimensions: 205mm (W) x 205mm (D) x 108mm (H)
Weight: 1.5kg net / 2kg gross
Motherboard: Mini-ITX
Expansion slots: 2 (half height)

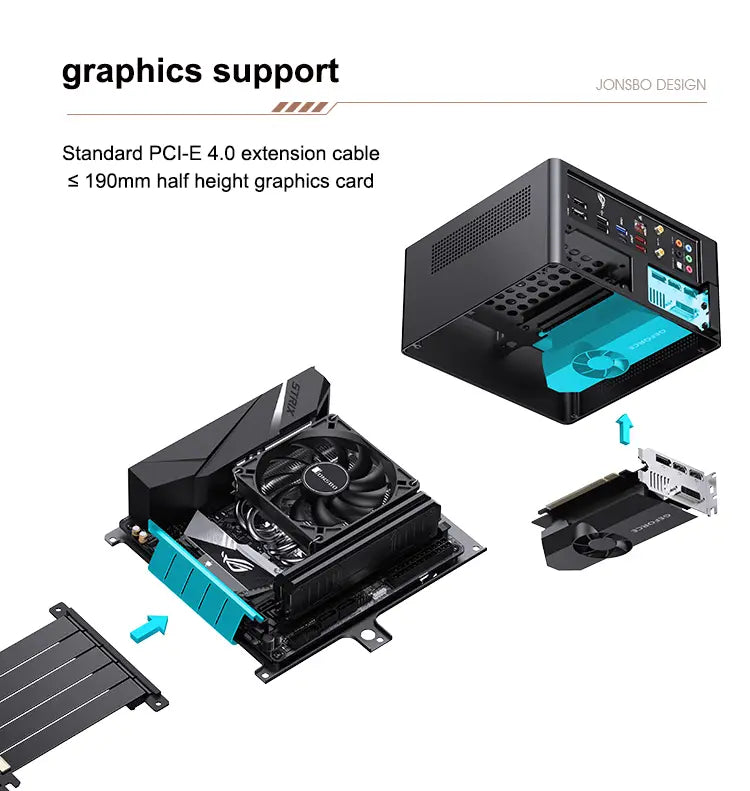

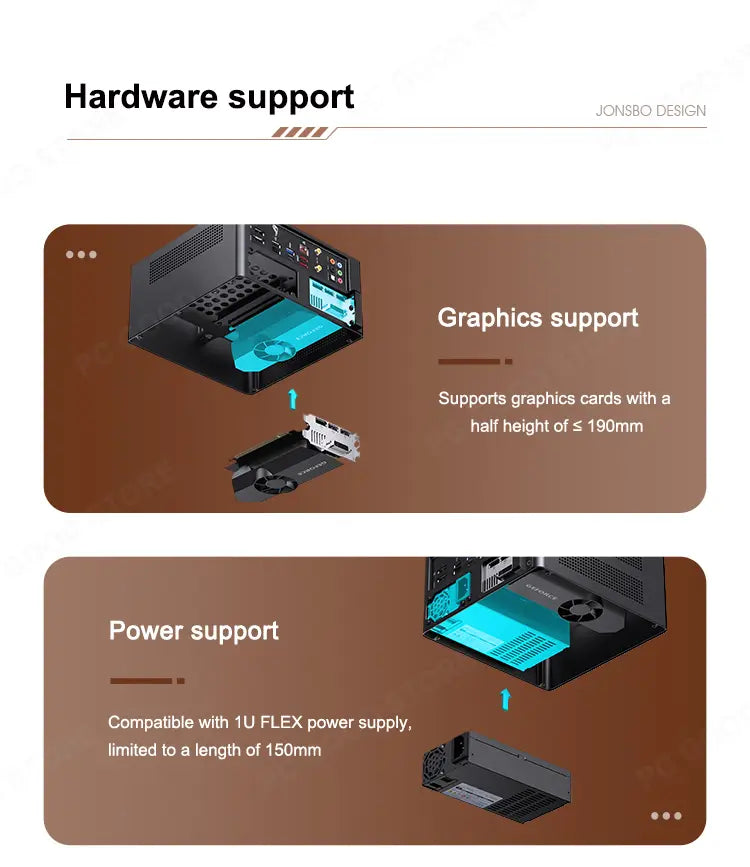

Graphics card: up to 190mm (half height)
Power supply: FLEX 1U up to 150mm
Maximum cooler height: 38mm
Front doors: Type-C x1
Both models utilize FLEX 1U power supplies up to 150mm , feature discreet cooling with 40mm mini fans , and limit the CPU cooler to 38mm , ensuring a super compact form factor for those who value portability and organization.
