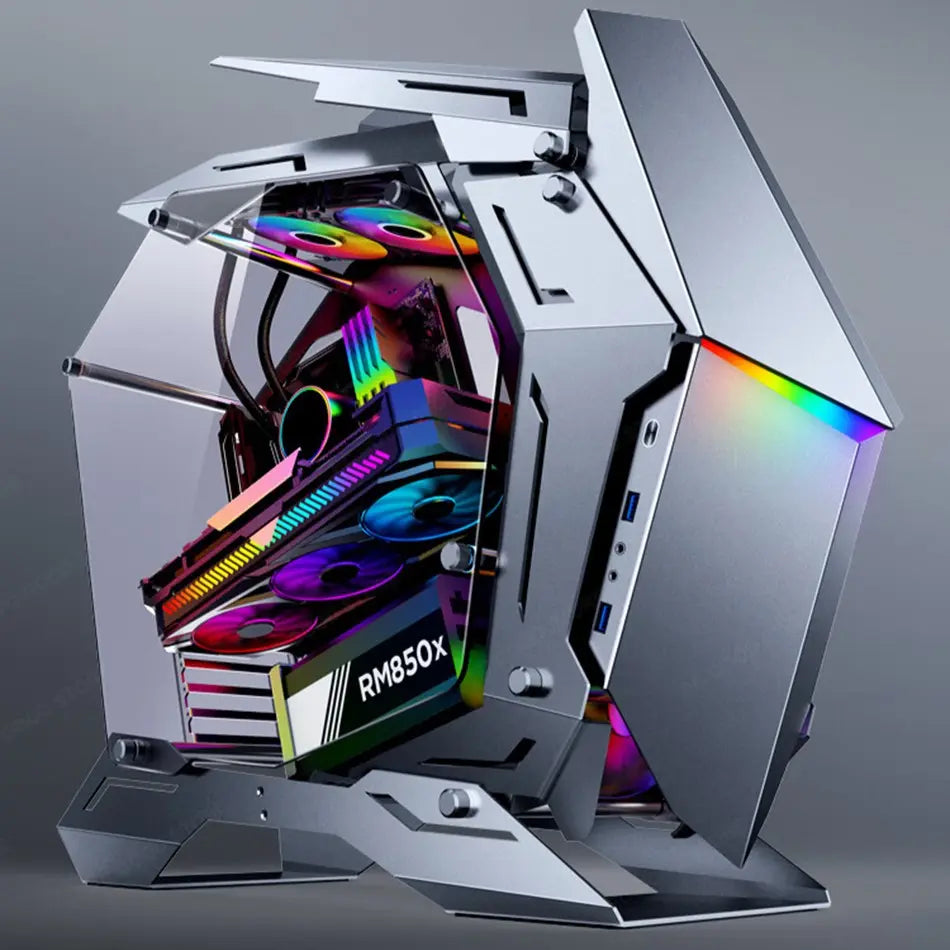

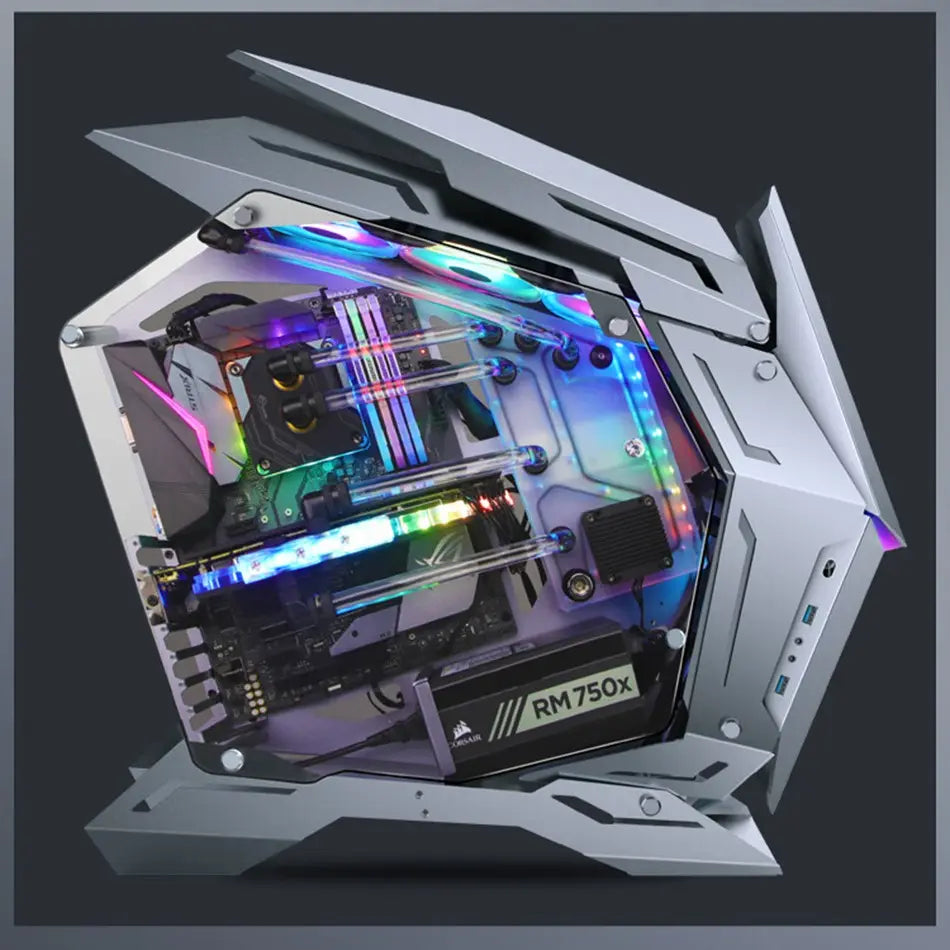

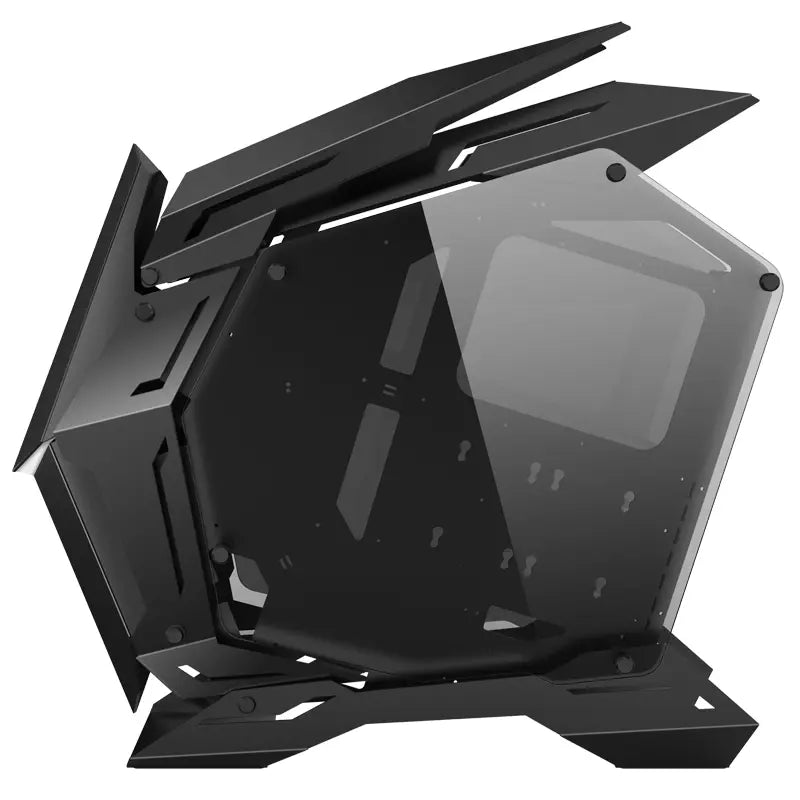

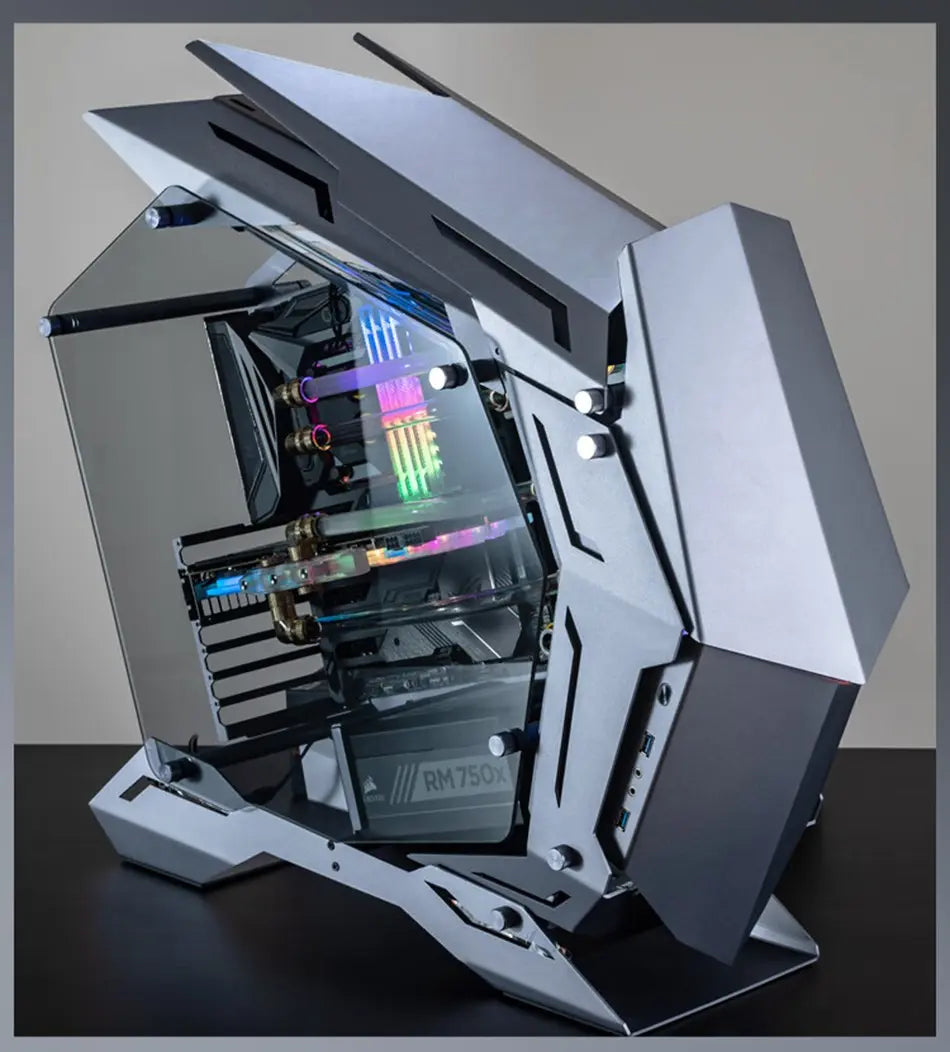

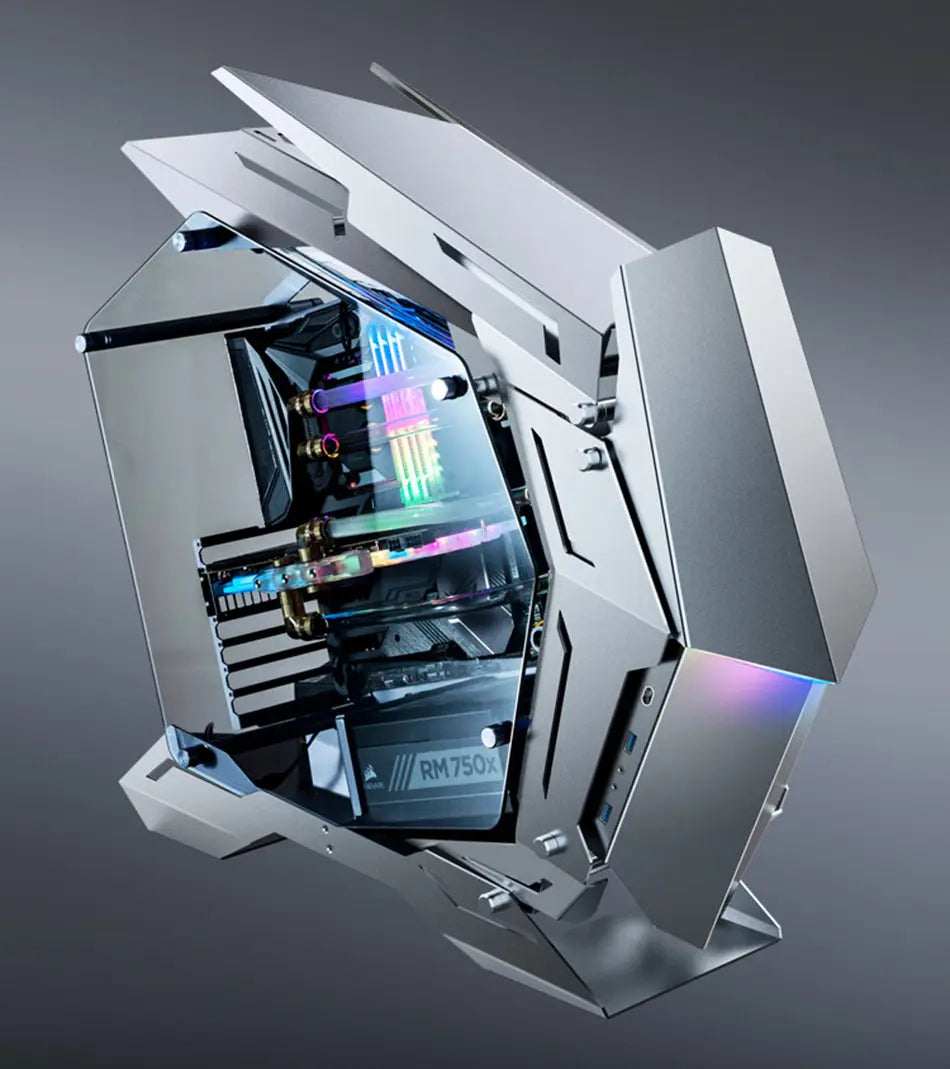

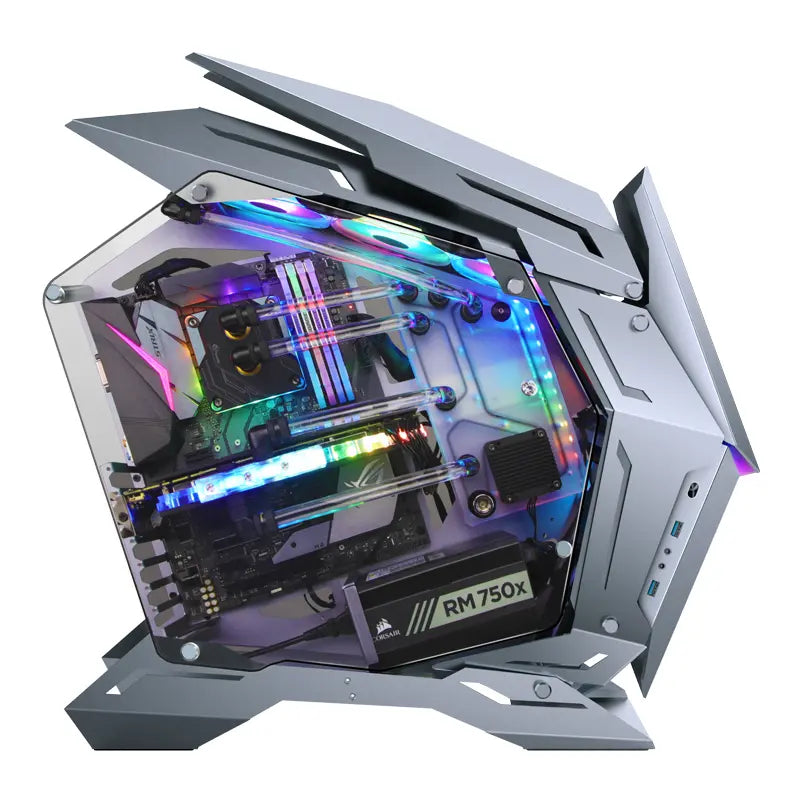

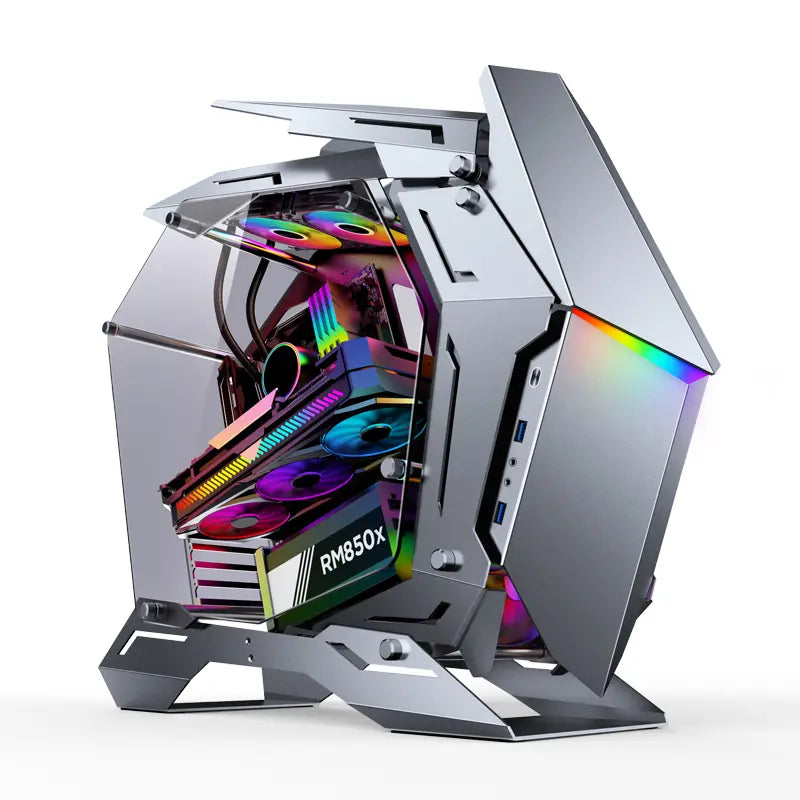

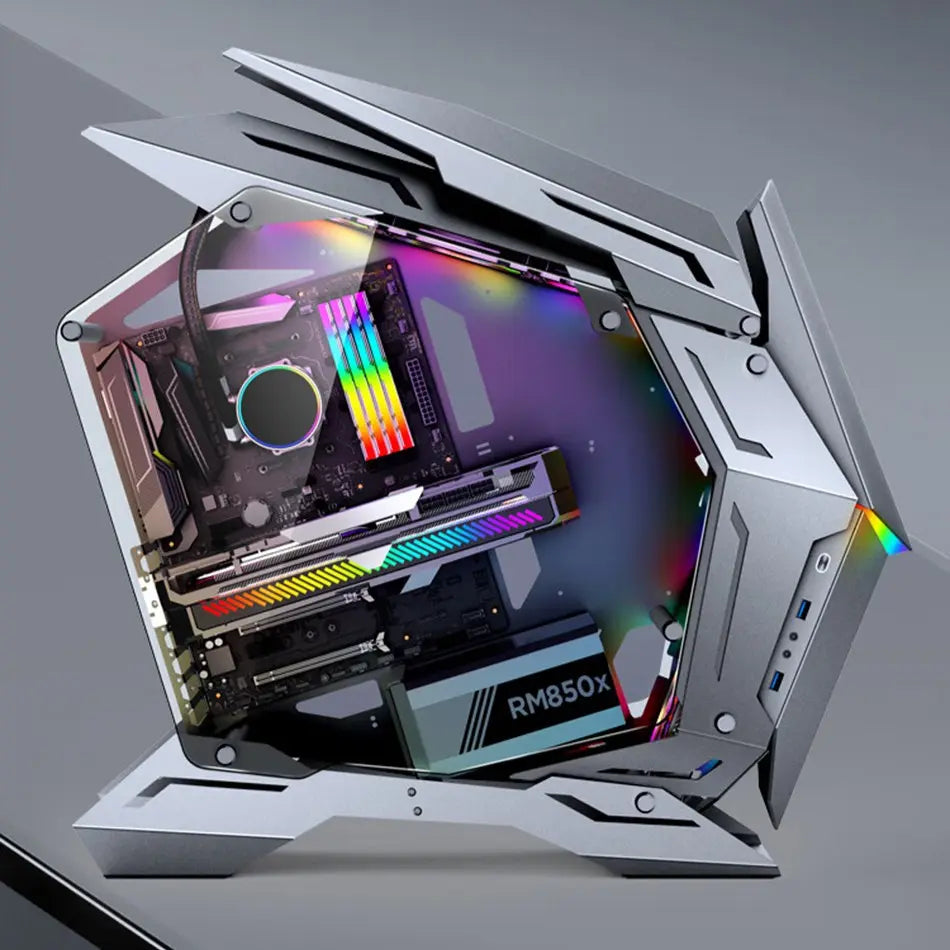

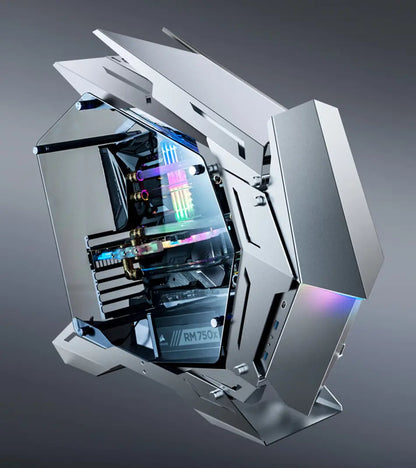

The Jonsbo MOD-3 is a high-end case that combines futuristic, mech-inspired design with premium materials to create one of the most impressive chassis on the market. Constructed from aluminum alloy and 4mm tempered glass , it delivers robustness, sophistication, and a look that transforms any setup into a true gaming work of art.
Supporting E-ATX motherboards , graphics cards up to 400mm , and coolers up to 170mm , the MOD-3 ensures compatibility with the most powerful configurations. Furthermore, it allows the installation of radiators up to 360mm for liquid cooling systems, making it ideal for those seeking maximum performance without sacrificing style.
Main Features

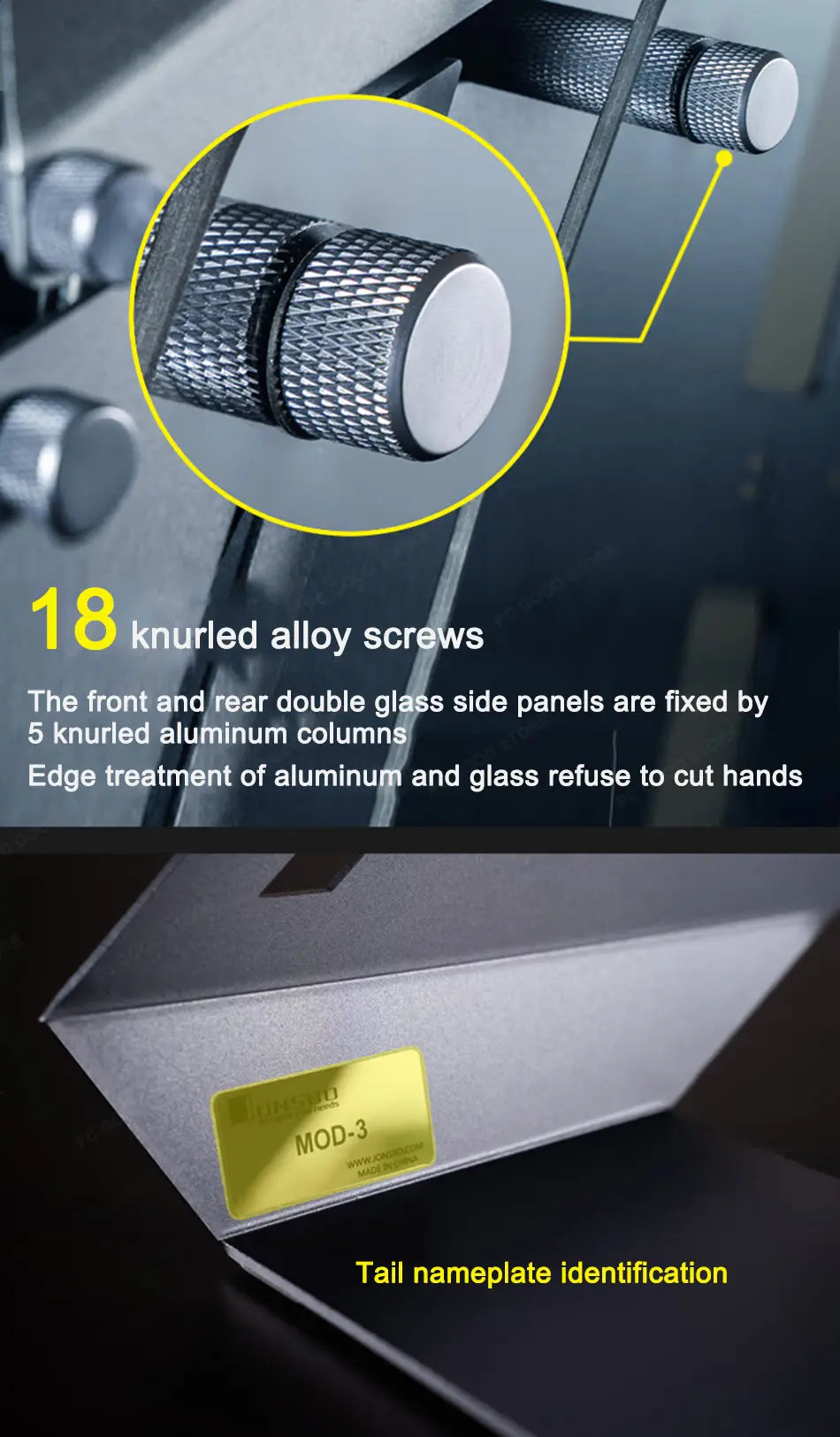

Design inspired by wicks: Open structure in anodized aluminum and 4mm tempered glass panels, combining aggressive aesthetics and durability.
Supports extreme hardware: Compatible with GPUs up to 400mm and CPU coolers up to 170mm .

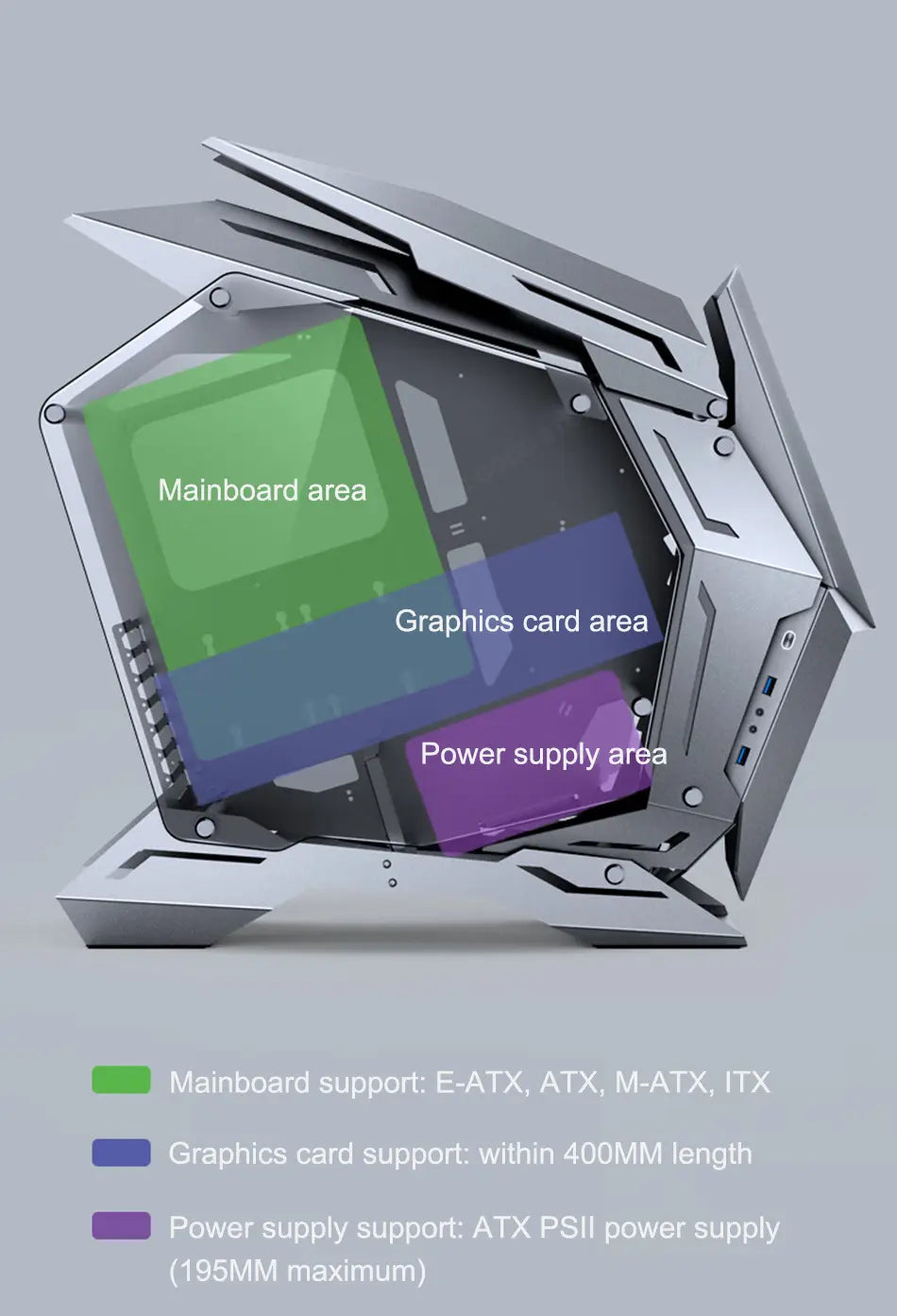

Ample internal space: Supports E-ATX, ATX, M-ATX and ITX , ensuring complete freedom of assembly.

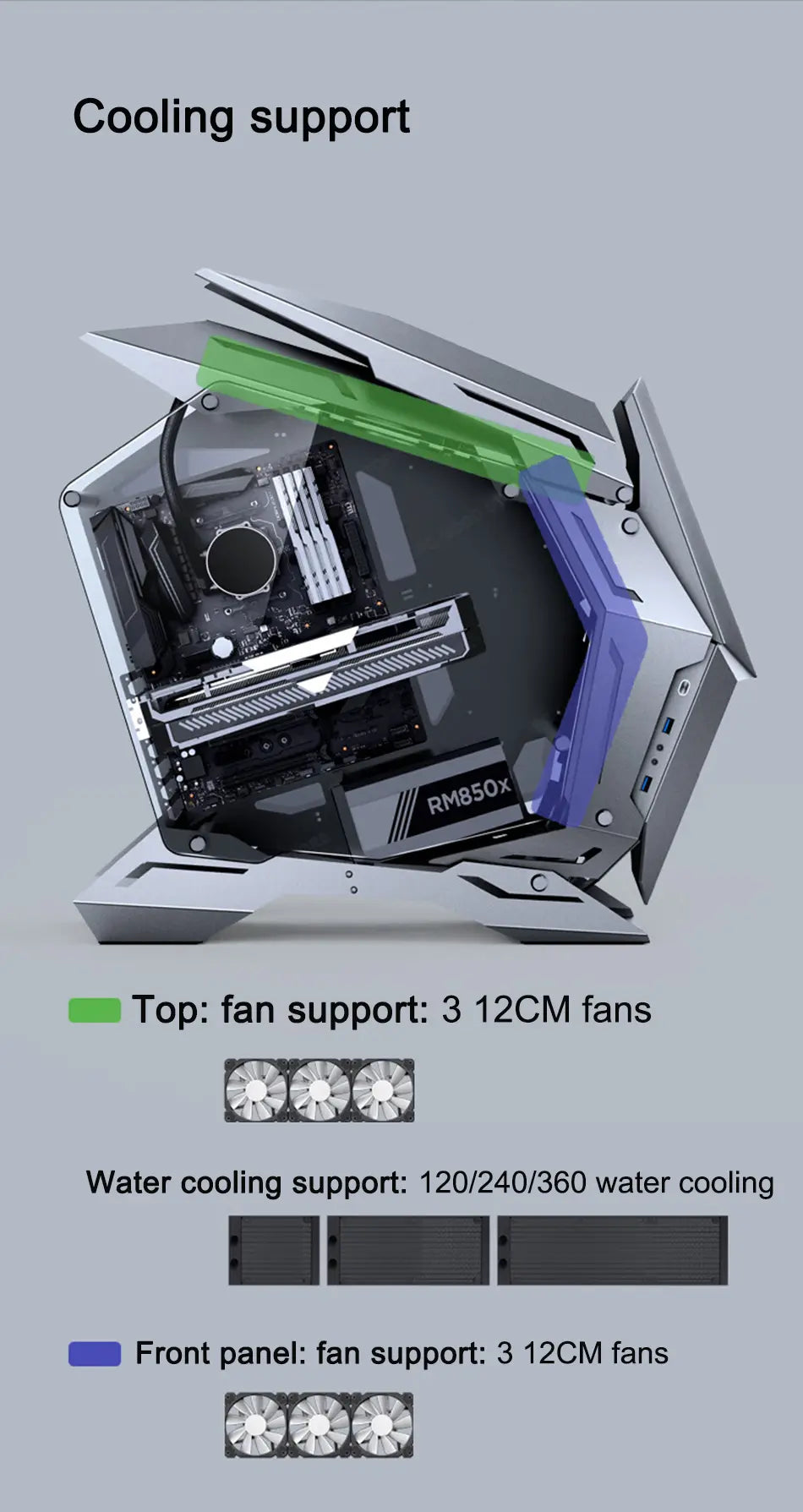

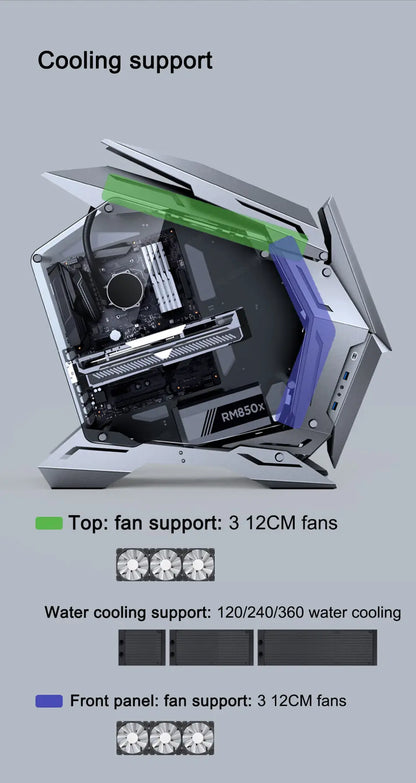

Prepared for advanced cooling: Supports 240mm or 360mm radiators and up to 6 x 120mm fans .

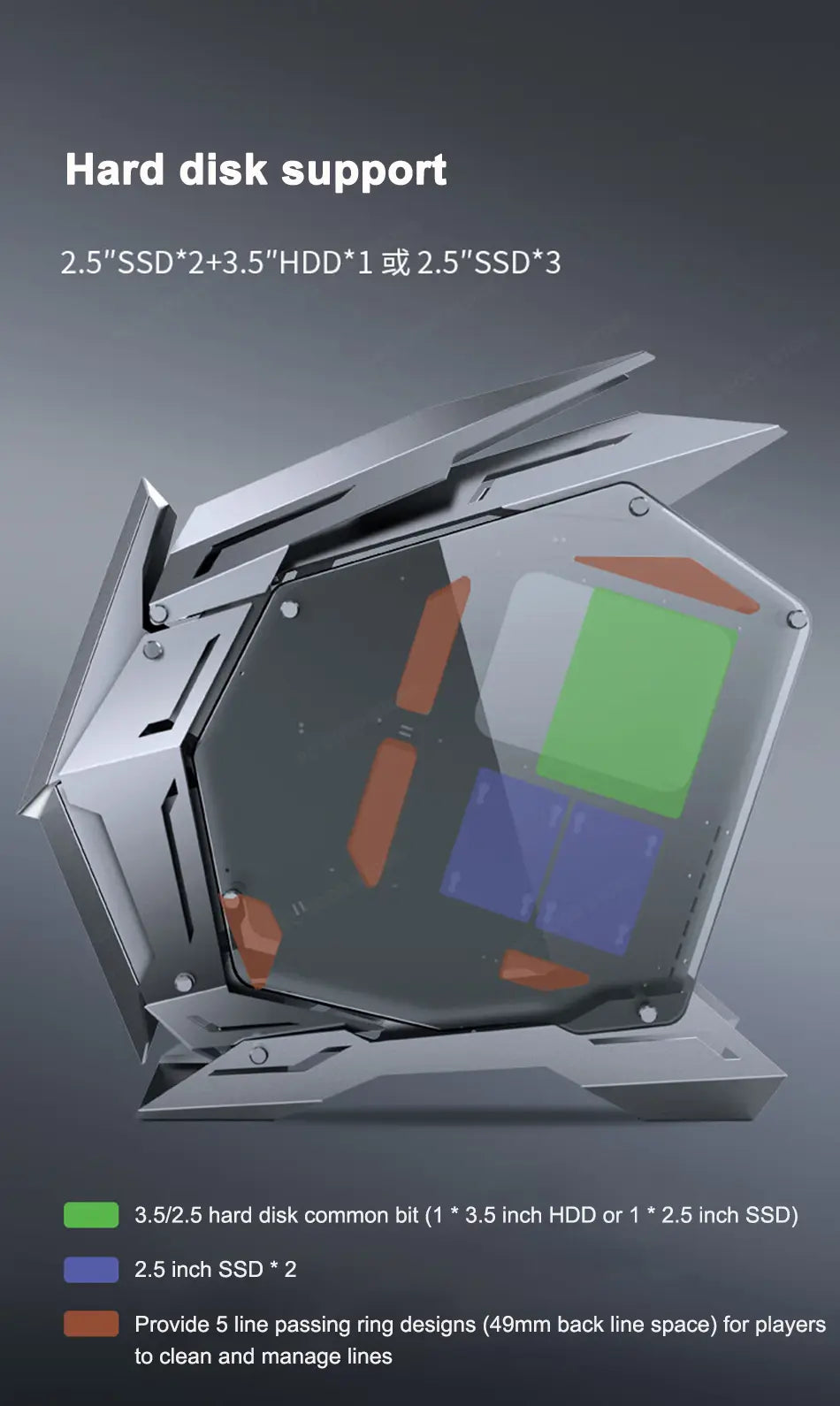

Flexible storage: Option to install 2 x 2.5" SSDs + 1 x 3.5" HDD or up to 3 x 2.5" SSDs .

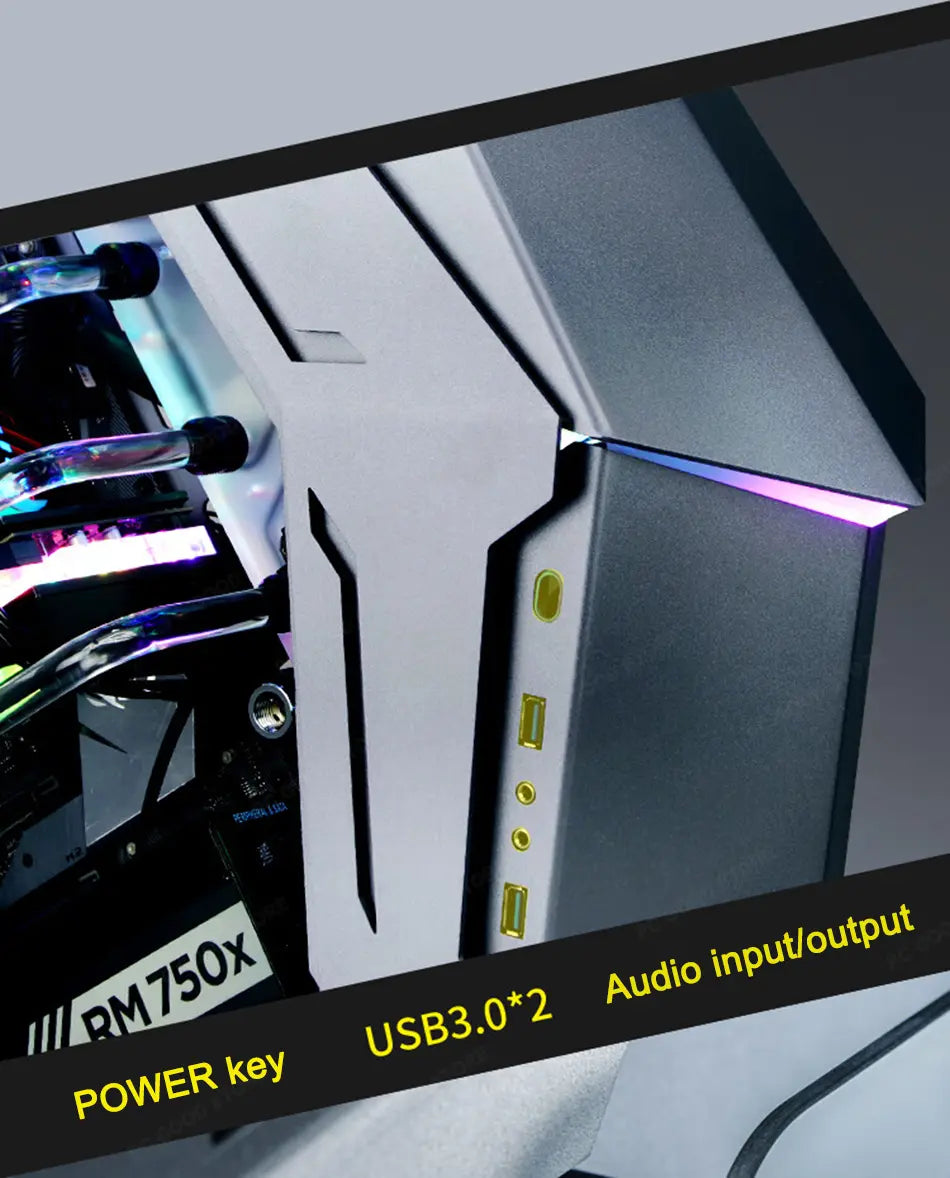

Modern connectivity: Front panel with 2 x USB 3.0, Audio and Microphone .
Robust structure: Net weight of 8kg and full tower design, ideal for high-end setups.
Technical Specifications
Product: Jonsbo MOD-3 Case

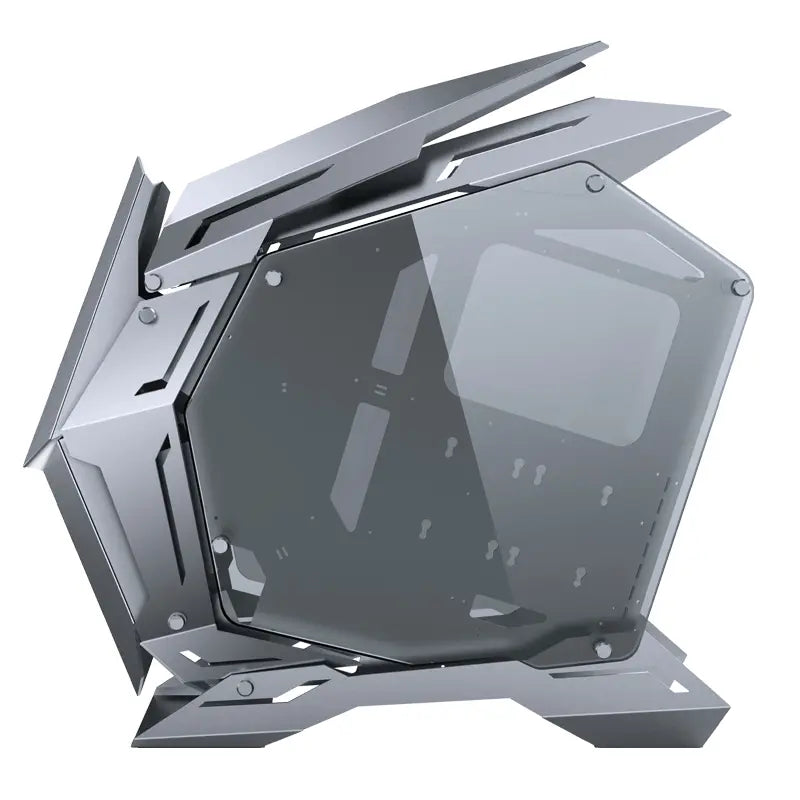

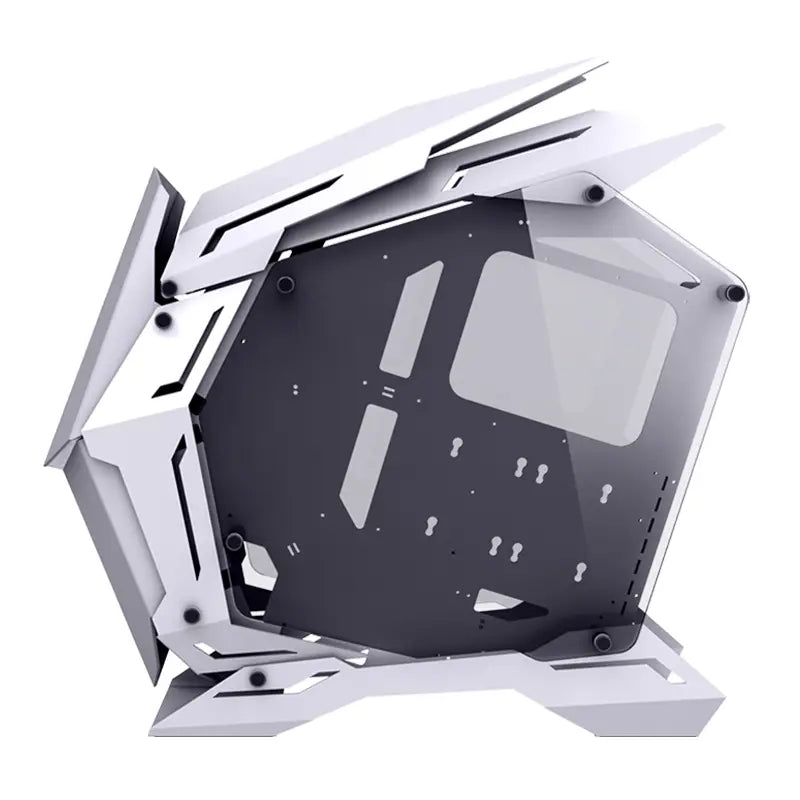

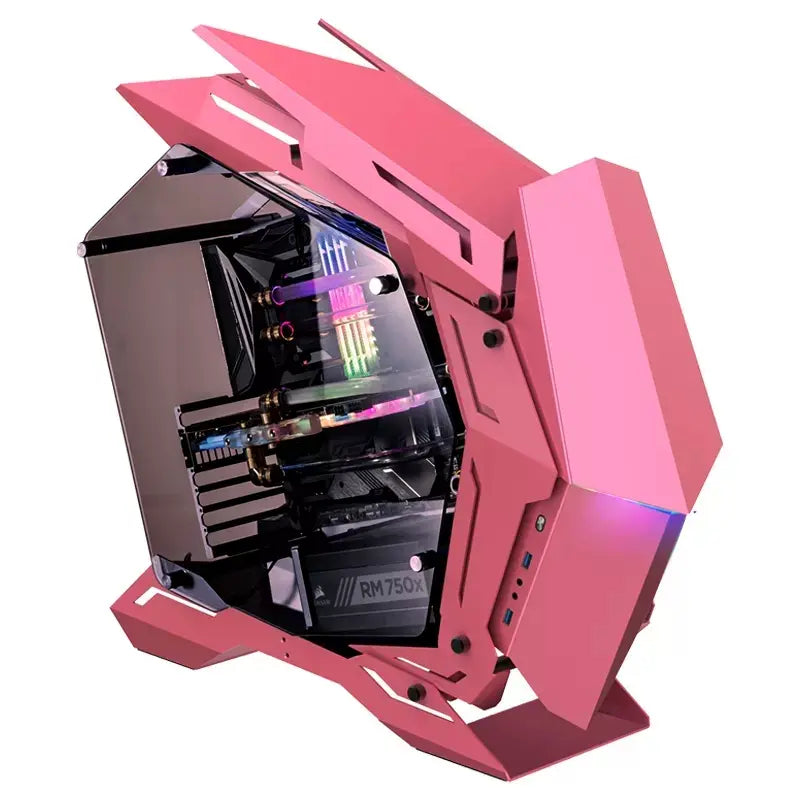

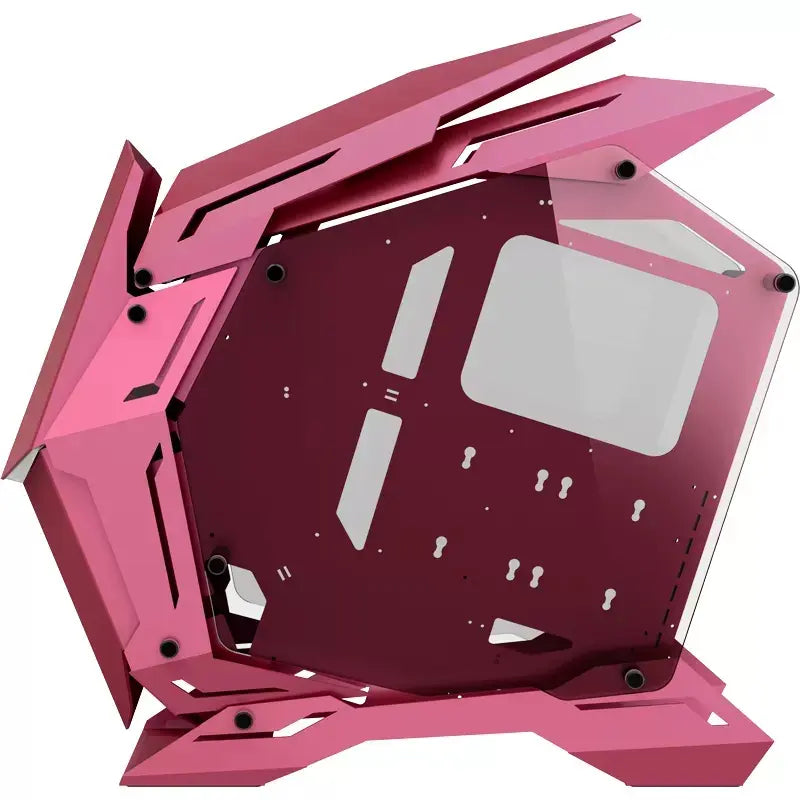

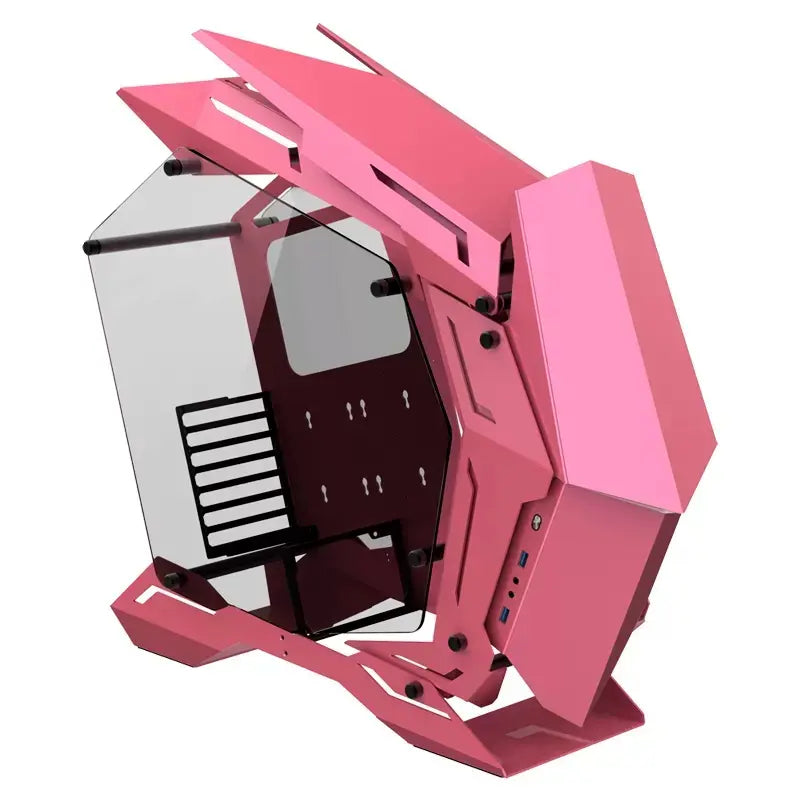

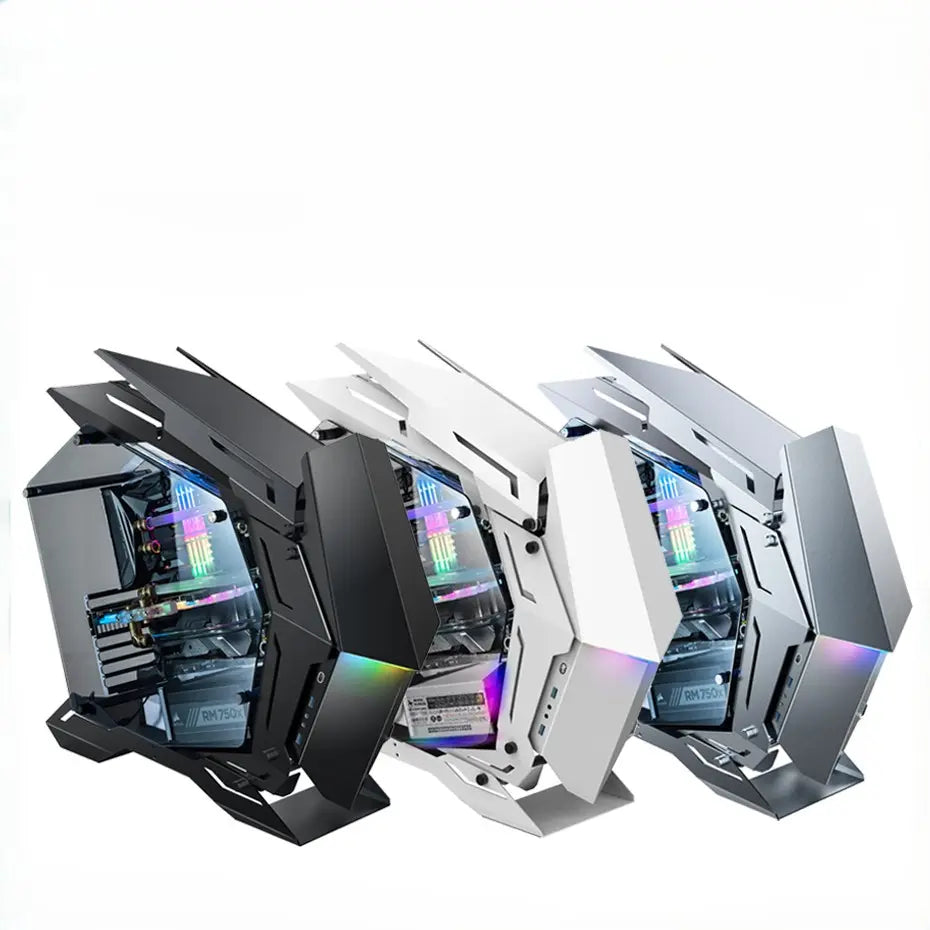

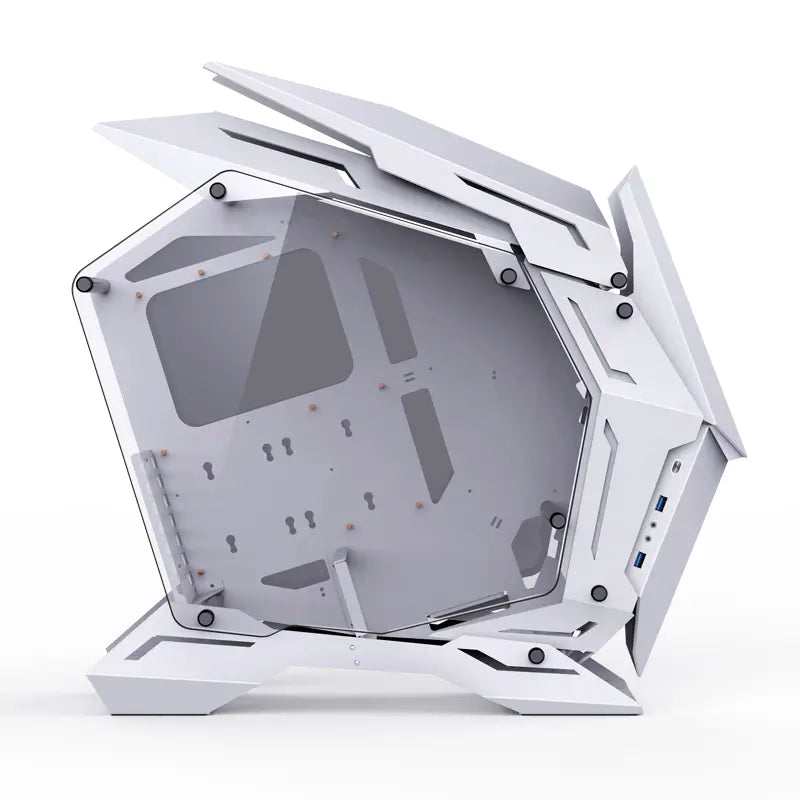

Available colors: Gray / Pink / Black / White

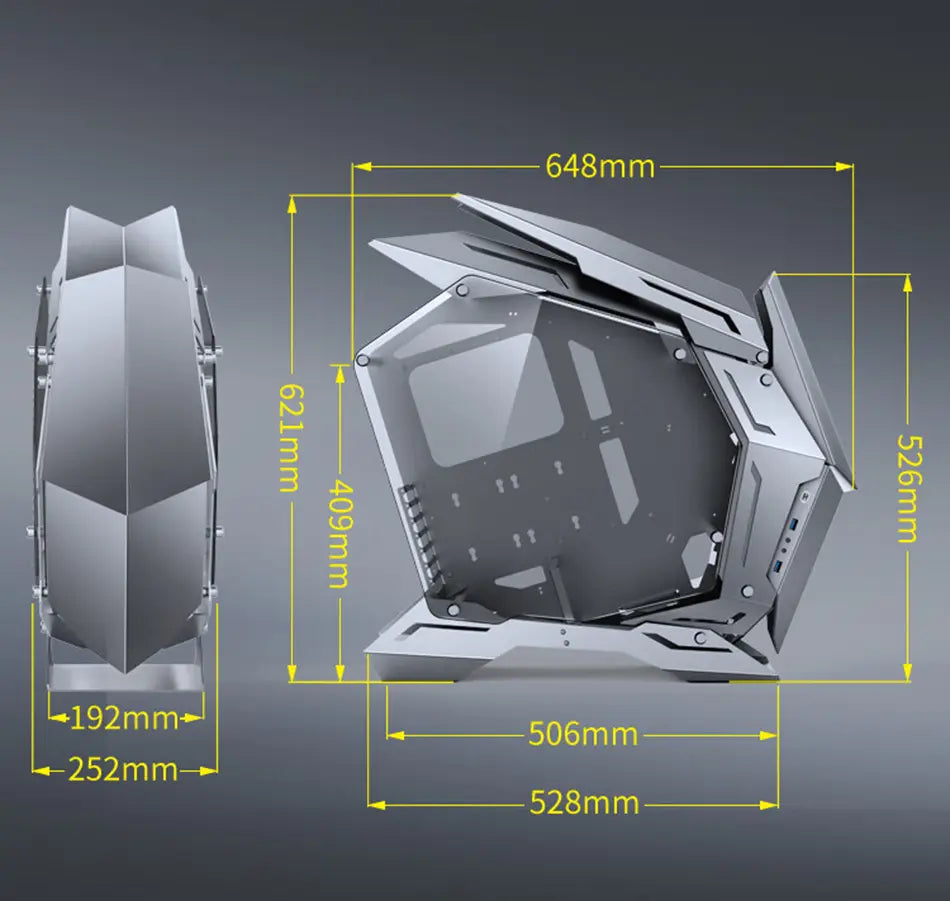

Dimensions: 232 × 647 × 620 mm
Weight: 8kg net / 10kg gross
Material: Aluminum alloy + 4mm tempered glass

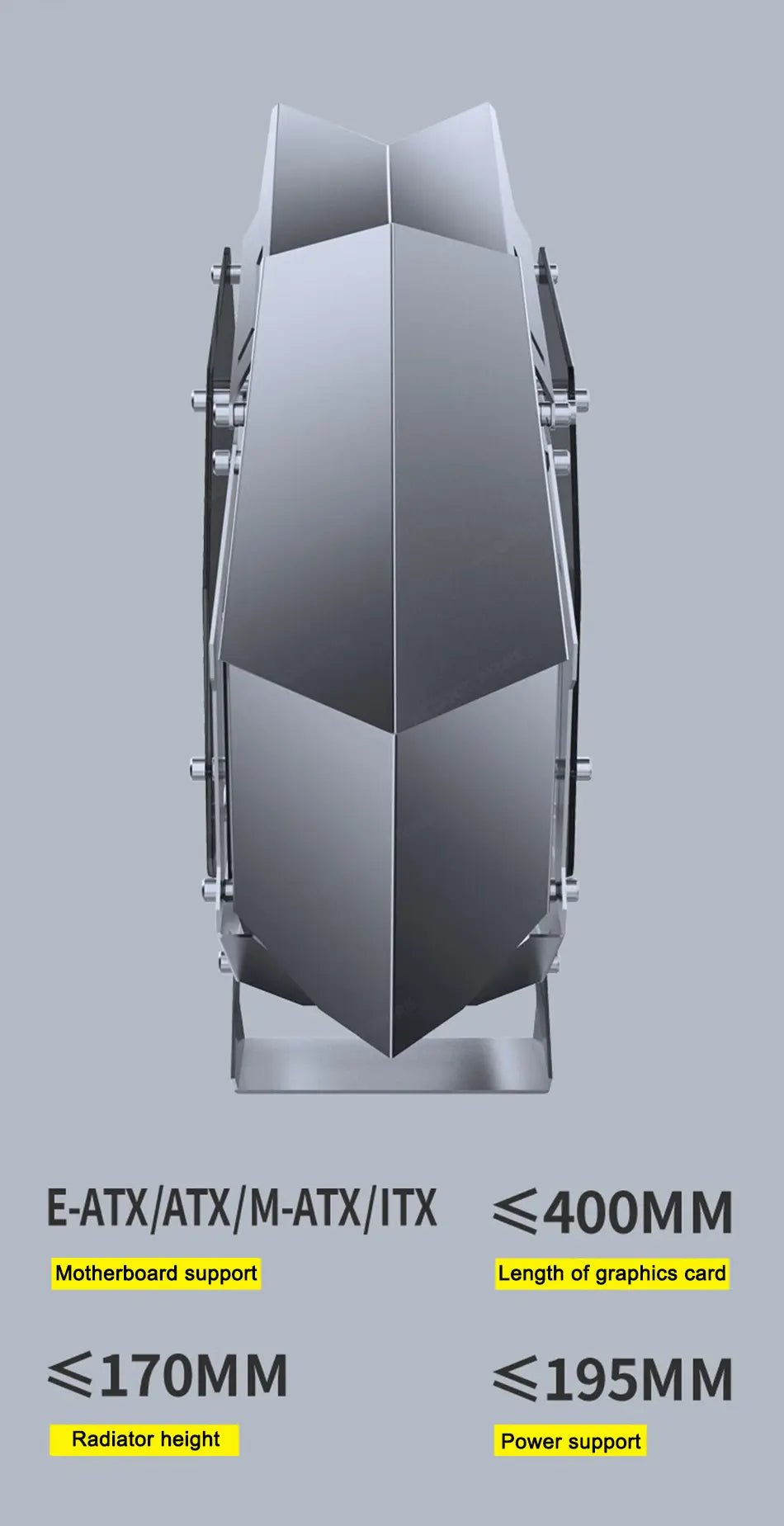

Compatibility: E-ATX / ATX / M-ATX / ITX
Power supply: Standard ATX PS2 (up to 195mm)
Maximum cooler height: 170mm
Maximum GPU length: 400mm
Internal bays: 2 x 2.5" SSD + 1 x 3.5" HDD or 3 x 2.5" SSD
Expansion slots: 7
Front interface: 2 × USB 3.0 / 1 × Audio / 1 × Mic
Supported fans:
Top: 3 × 120mm (optional)
Front: 3 × 120mm (optional)

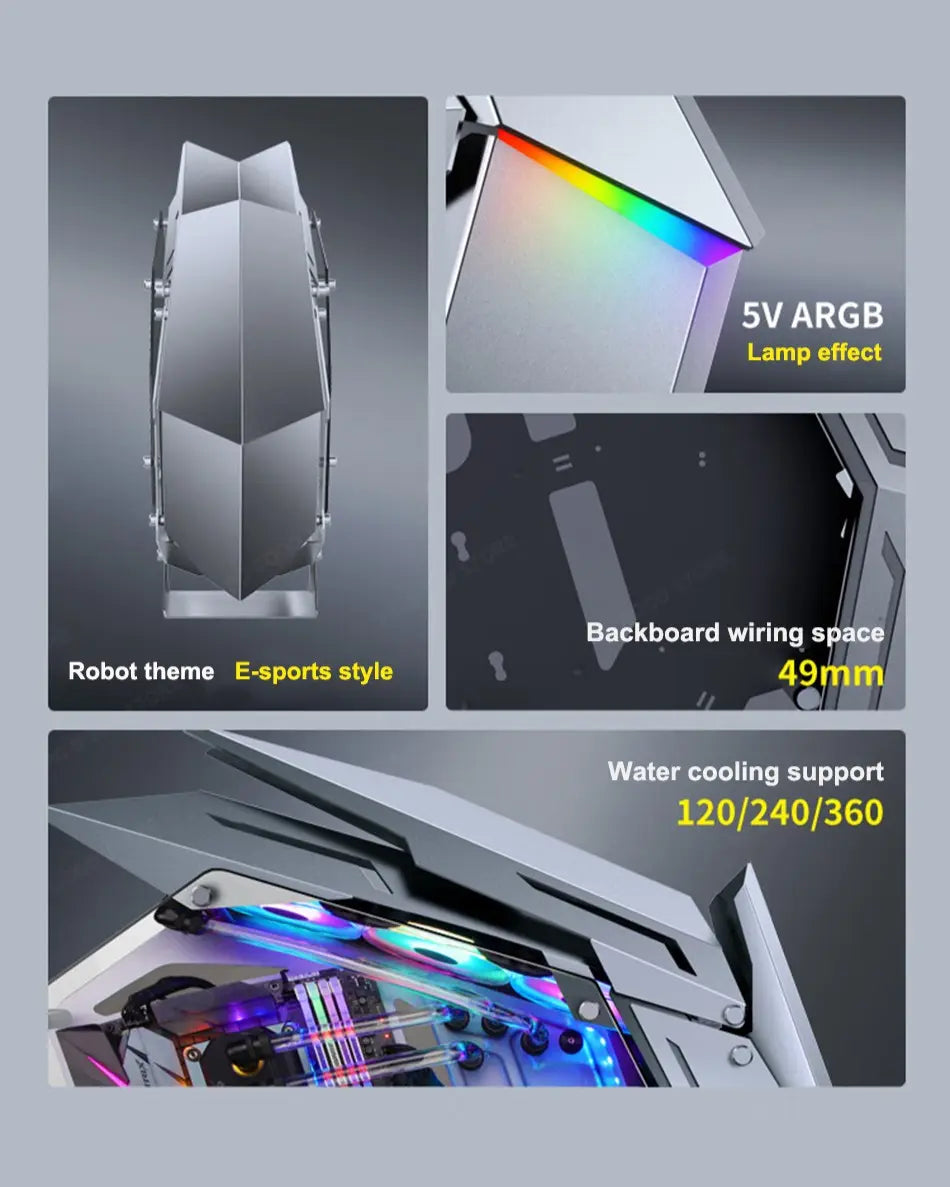

Radiators: 240mm or 360mm

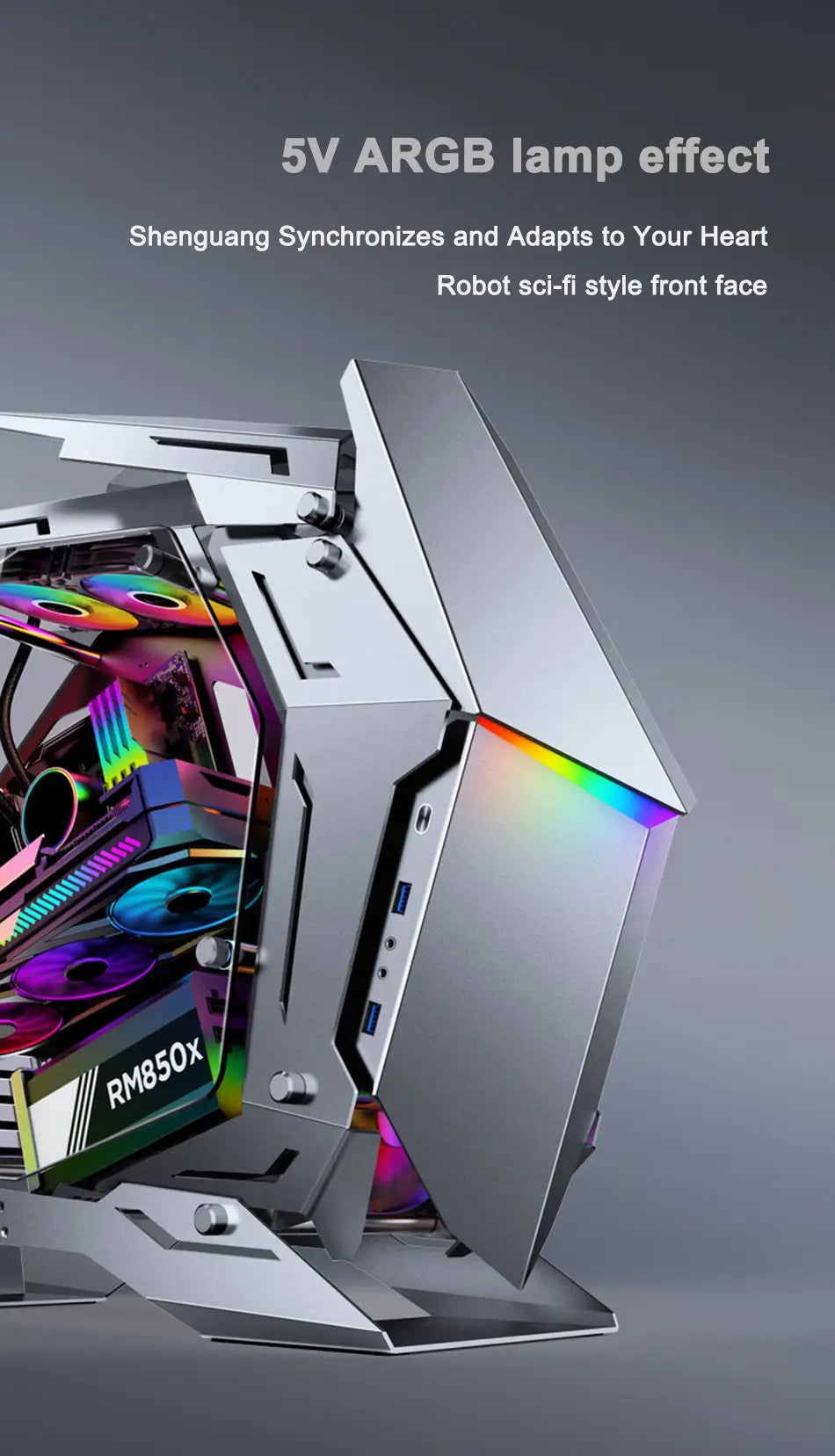

Lighting: A-RGB support (optional, not included)
This case is clearly for those who want a visually striking setup , a gamer showcase style, with a touch of e-sports and futuristic technology .
