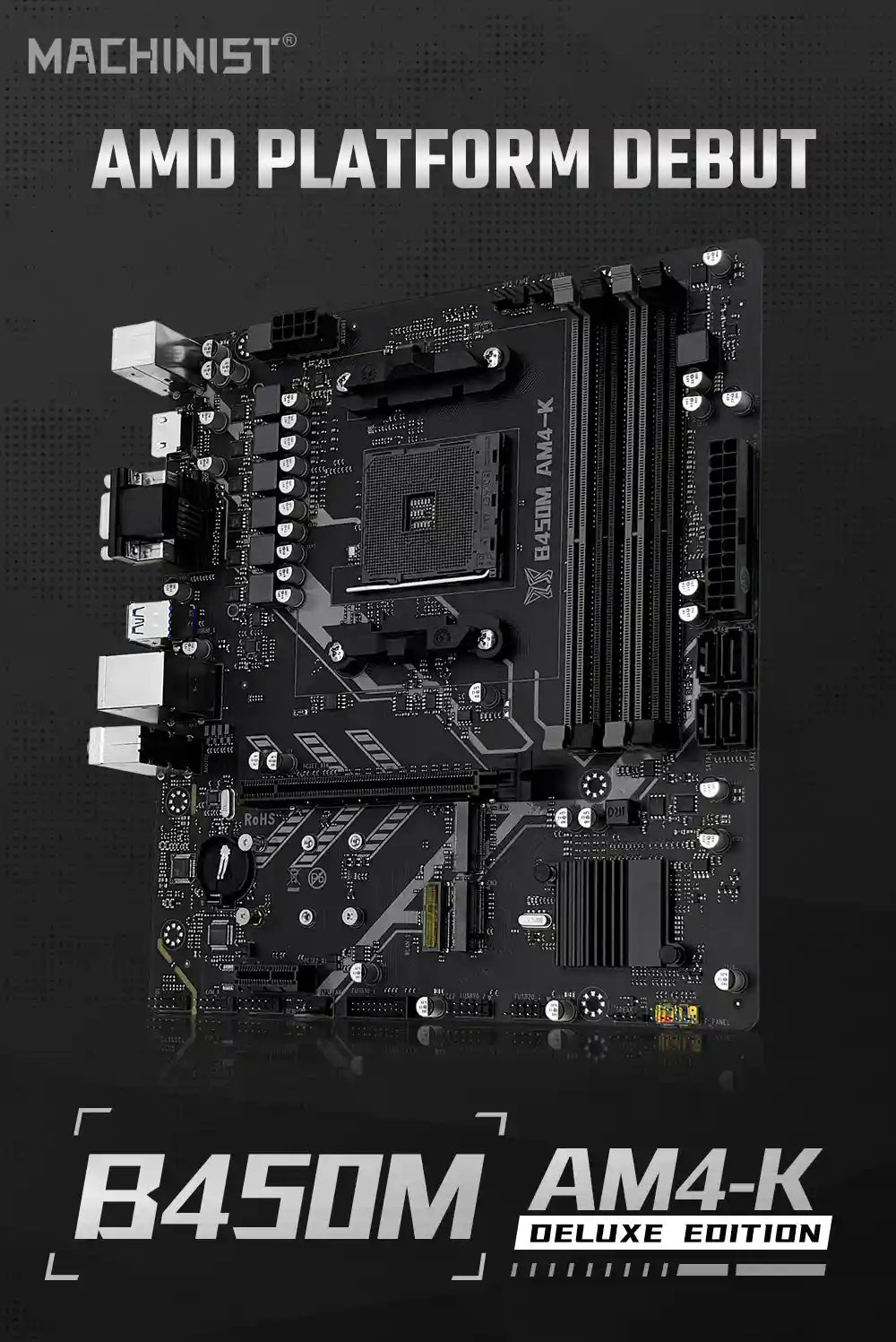

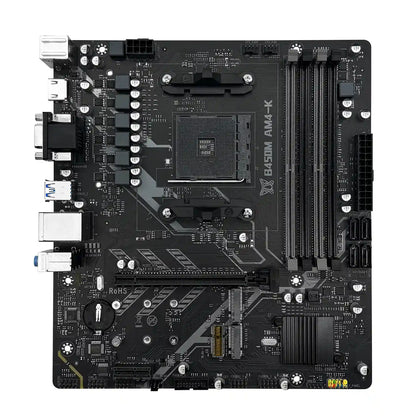

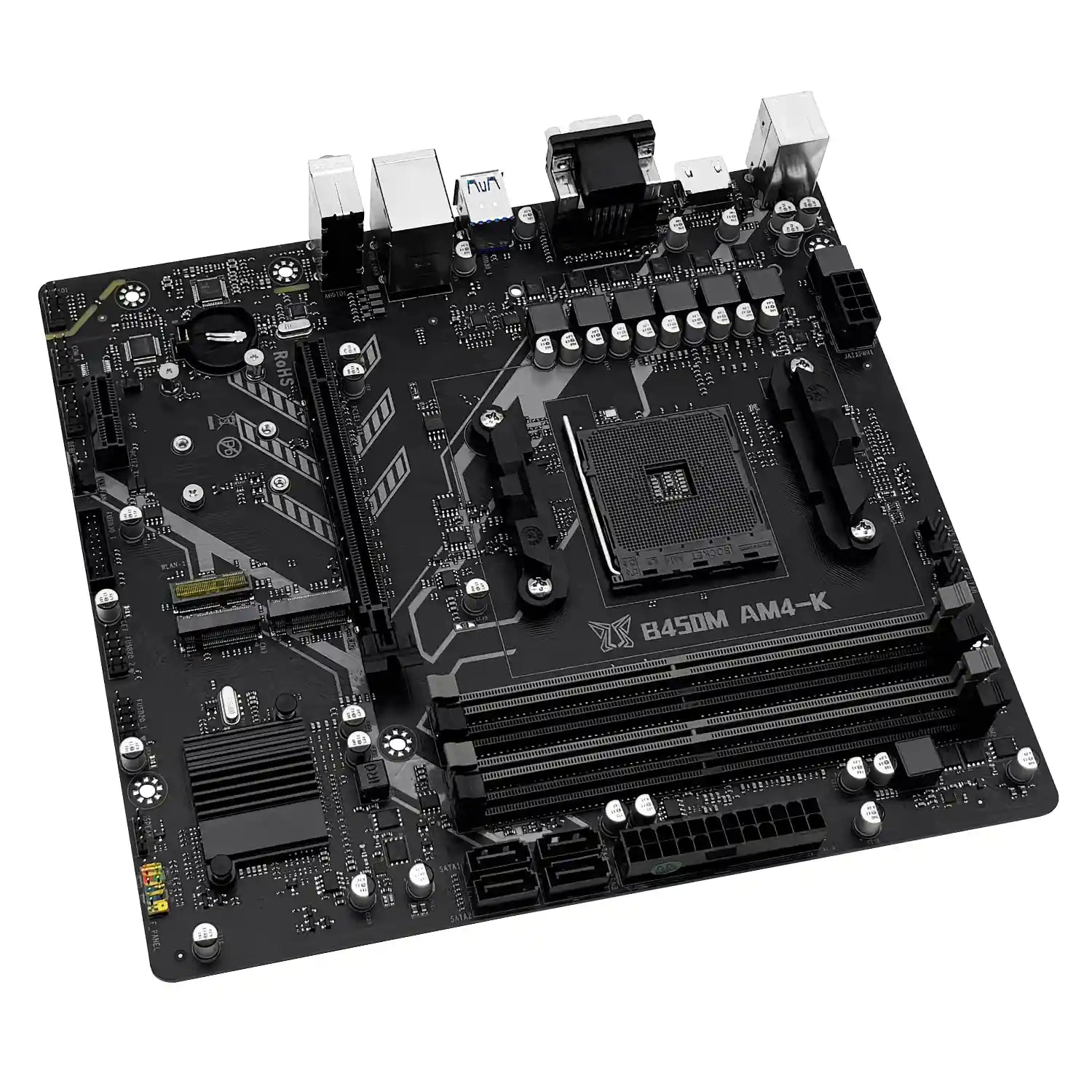

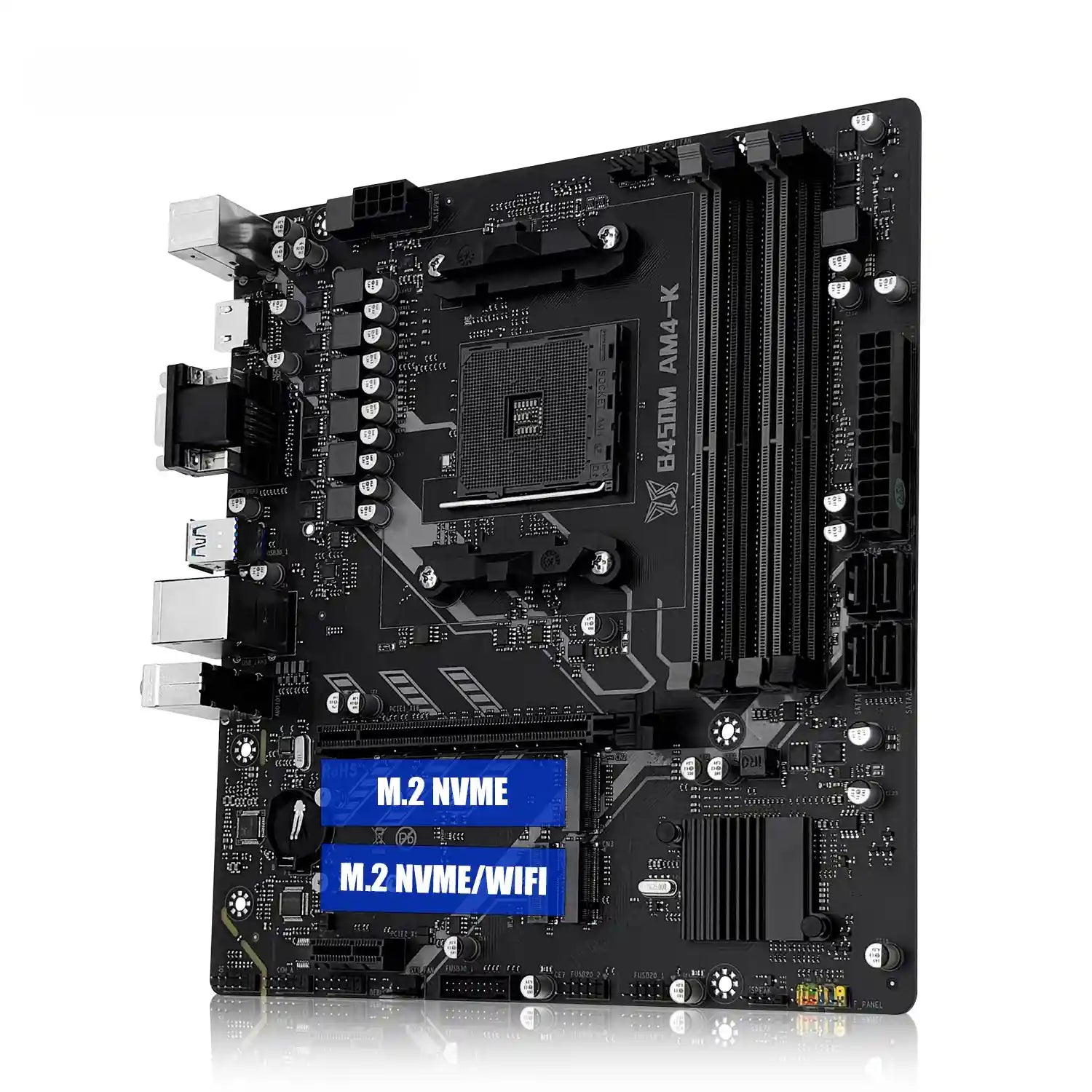

Motherboard B450M-AM4-K (AM4)

For those looking to build a modern PC with a solid foundation for upgrades and consistent performance, the MACHINIST B450M-AM4-K Motherboard is an excellent choice. Equipped with the AMD B450 chipset, it supports various Ryzen processors on the AM4 platform, including popular 5000 series models like the Ryzen 5500, 5600, and 5600G, allowing you to build anything from gaming machines to versatile workstations.

One of the main highlights of this motherboard is its support for DDR4 memory with up to four slots, allowing for easy RAM capacity expansion and reaching up to 128GB. This provides more freedom for those working with heavy multitasking, video editing, 3D modeling, or professional applications that require a large volume of memory.

Furthermore, the presence of an M.2 NVMe slot, SATA III ports, and a PCI-Express 3.0 interface ensures excellent flexibility for fast storage and the installation of dedicated graphics cards. With a Micro-ATX form factor and various connectivity options, it adapts well to different high-performance PC builds.

Main Features:

• Compatible with AMD Ryzen processors: Support for AM4 platform CPUs, including multi-generation Ryzen models.
• Four DDR4 memory slots: Allows installation of up to 128GB of RAM, ideal for intense multitasking and professional applications.
• M.2 NVMe SSD support: Ultra-fast storage for quick system boot-up and rapid application loading.
• AMD B450 Chipset: Reliable and stable platform, widely used in high-performance systems.
• Complete connectivity: Includes USB 3.0, USB 2.0 ports, Gigabit network, and integrated HD audio.

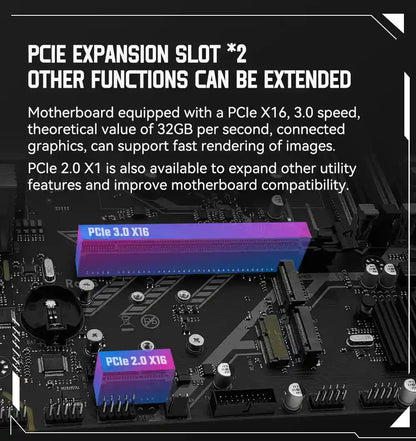

• PCI-Express expansion: PCIe x16 slot for graphics cards and PCIe x1 slot for additional cards.
• Advanced BIOS features: Support for TPM 2.0, XMP, PBO, Wake-on-LAN, and fan speed control.
• Micro-ATX Form Factor: Compact structure that facilitates assembly in various types of cases.

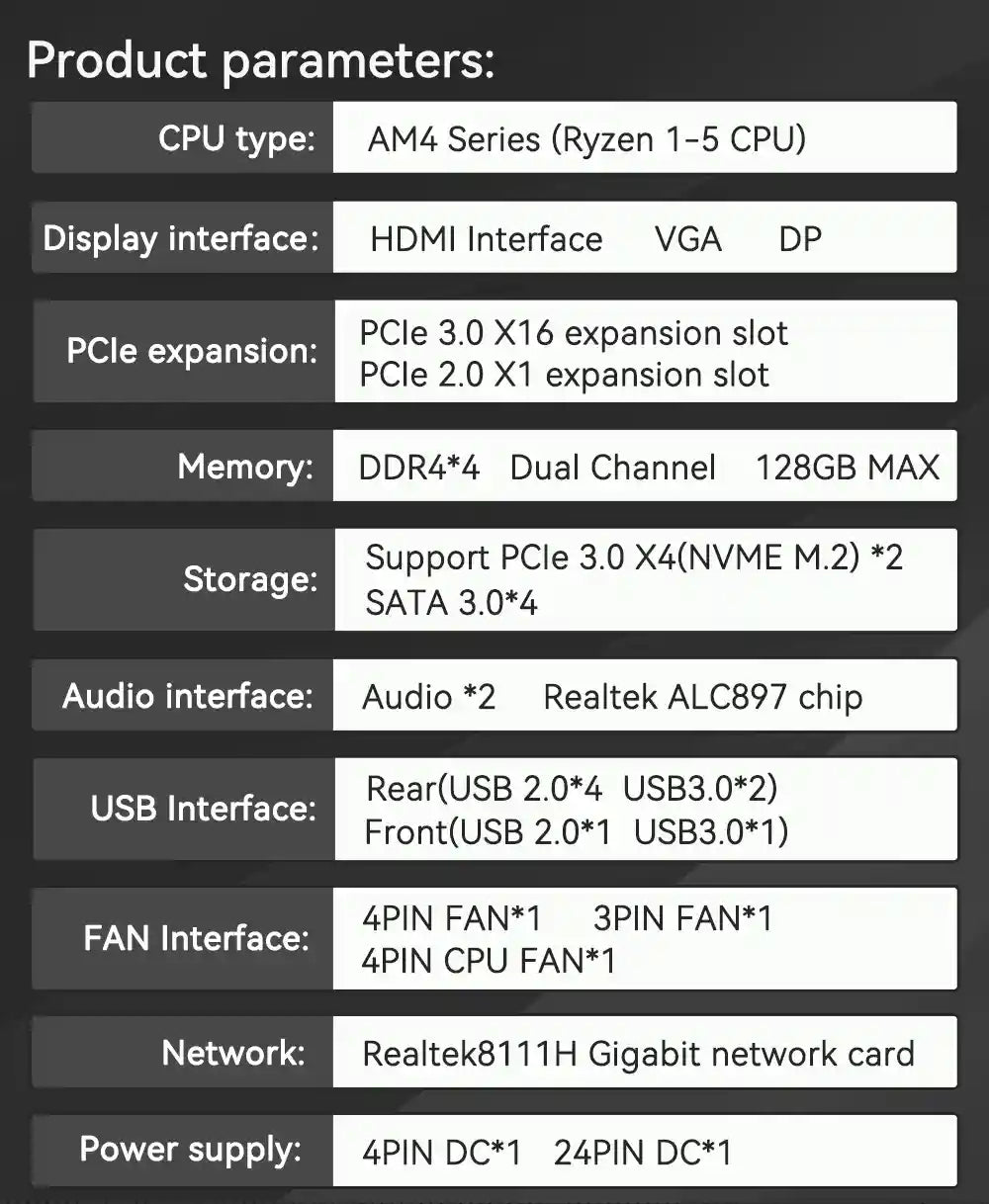

Technical Specifications:

• Product: MACHINIST B450M-AM4-K Motherboard
• Brand: MACHINIST
• Chipset: AMD B450
• Socket: AM4
• Form Factor: Micro-ATX
• Supported Memory: DDR4
• Memory Slots: 4
• Maximum Memory Capacity: Up to 128GB
• Supported Frequencies: Up to 3600 MHz (depending on CPU)
• Storage: 1x M.2 NVMe + 4x SATA III
• PCI-Express Slots: 1x PCIe x16 3.0 + 1x PCIe x1
• Network: Gigabit Ethernet (Realtek 8111H)
• Audio: Realtek ALC897 HD
• Rear USB Ports: USB 3.0 and USB 2.0
• Video: HDMI and VGA (depending on the processor)

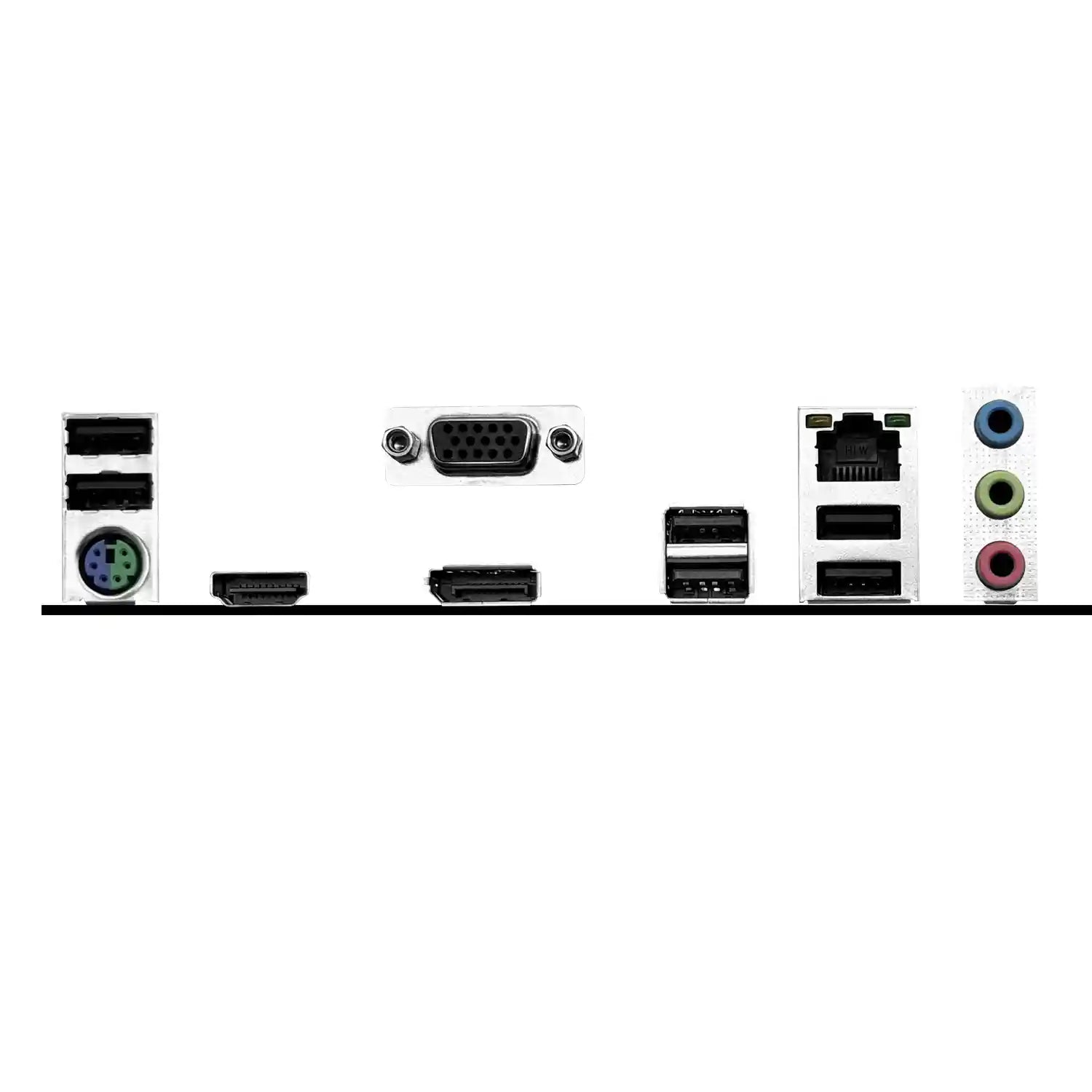

• Additional Rear Ports: PS/2, RJ45, audio connectors

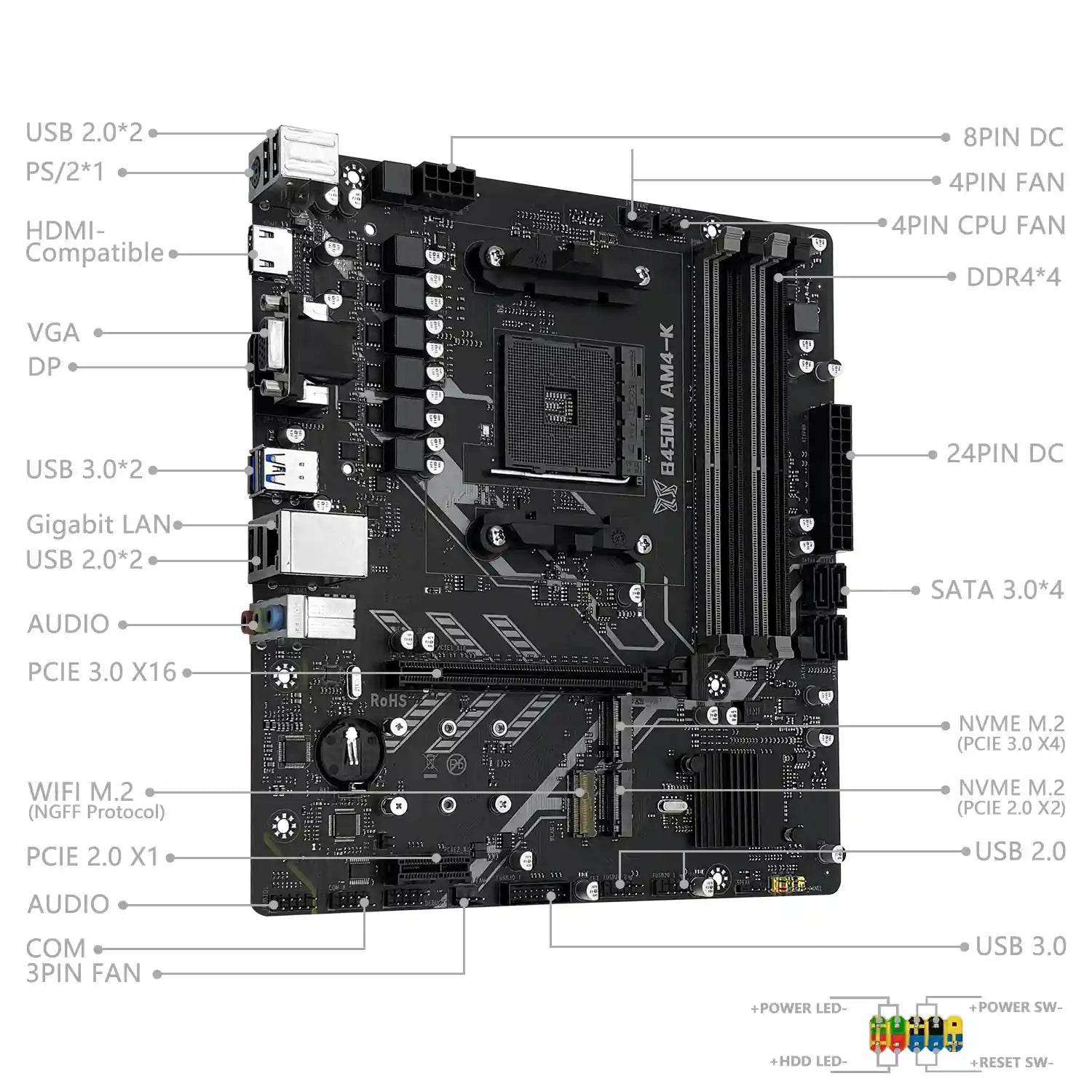

• Internal Connectors: 24-pin ATX, 8-pin CPU, USB 3.0, USB 2.0, AAFP

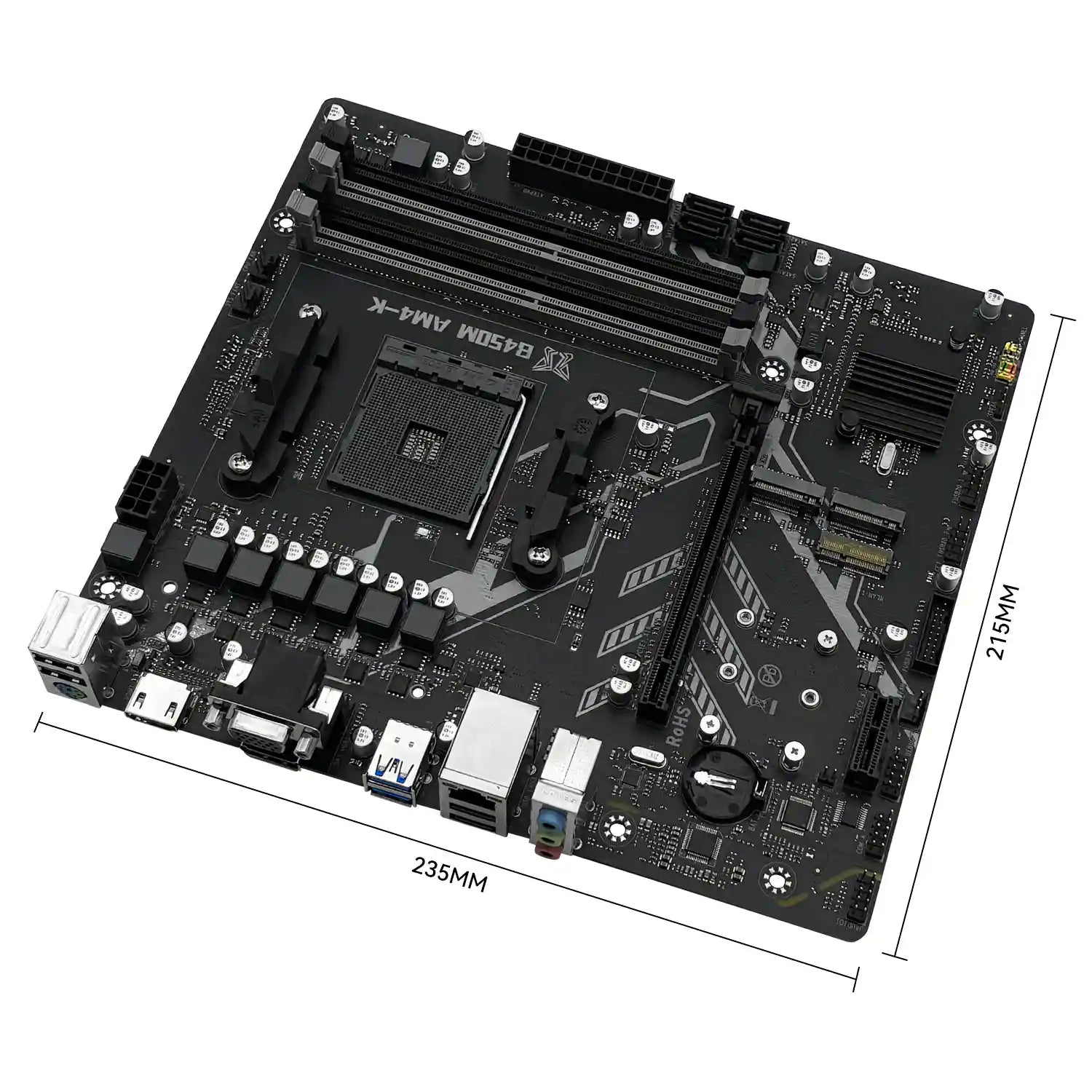

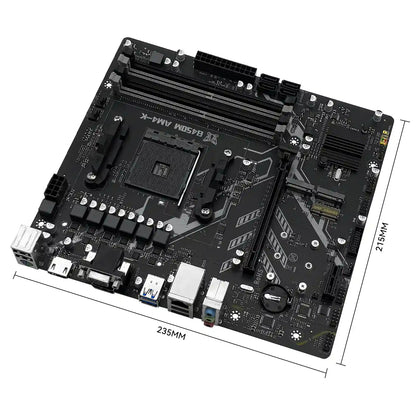

• Dimensions: 215 mm x 235 mm

The MACHINIST B450M-AM4-K is a great option for those looking to build a balanced computer prepared for upgrades. With support for large amounts of memory, NVMe storage, and compatibility with modern Ryzen processors, it offers a solid foundation for gaming PCs, work, or intensive daily use.

Note: The motherboard does not come with a processor, memory, or BIOS battery. Due to shipping regulations, the battery may be removed before shipment.
